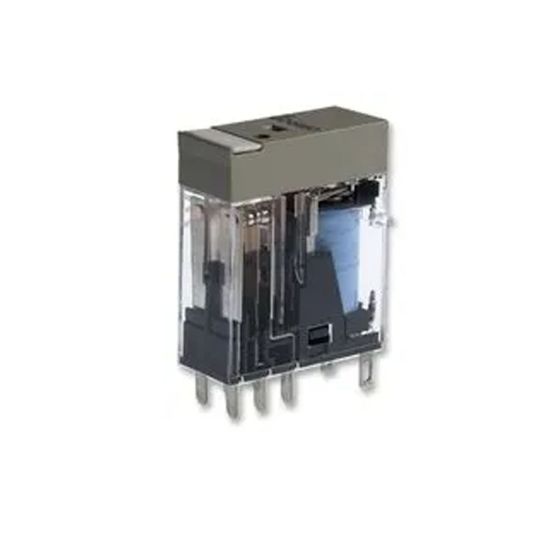

Omron General Purpose Relay Plug-In Mount 2P DPDT 5A 24VDC 8 Pin Flat
Loading...
Description
General Purpose Relay, 250 Volt AC, 24 Volt DC Coil Voltage, 5 Amp, 0.53 Watt, 8 Pin Flat, 2 Pole, DPDT Configuration, 1113 Ohm, 15 Operate/10 Release ms Operating Time, Plug-In Mounting, -40 to 70 deg C, 29 mm Height, 41.7 mm Width, 13 mm Depth
Key Specifications
| SKU |
OMRG2R2SNDC24
|
|---|---|
| Brand |
Omron
|
| Product Type |
Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | G2R-2-SN DC24-NLA |
| Contact Configuration | DPDT |
| Current | 5 Amp |
| Mounting Method | Plug-In |
| Operating Coil Voltage | 24 Volt DC |
| Depth | 13 mm |
| Number Of Poles | 2 Pole |
| Height | 29 mm |
| Operating Time | 15 Operate/10 Release ms |
| Pin Configuration | 8 Pin Flat |
| Resistance | 1113 Ohm |
| Power Rating | 0.53 Watt |
| Voltage | 250 Volt AC |
| Temperature | -40 to 70 deg C |
| Width | 41.7 mm |
