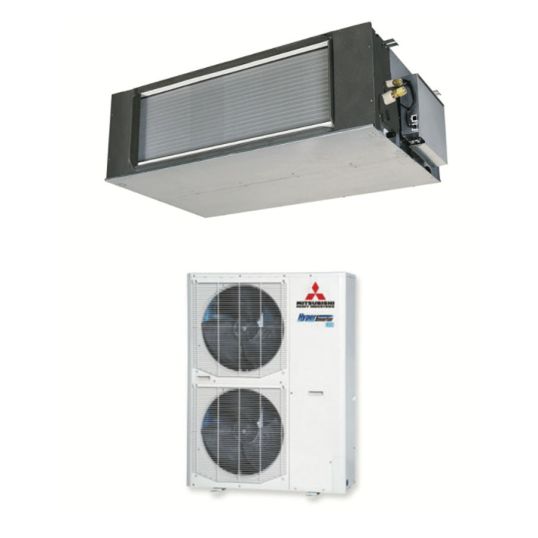

Mitsubishi Heavy Industries Ducted High Static Air Conditioner 12.5kW 6.4A Cooling 14kW 6.2A Heating R32
Description
Ducted High Static Air Conditioner, 12.5 kW Cooling Capacity, 14 kW Heating Capacity, 6.4 Amp Rated Current (Cooling), 6.2 Amp Rated Current (Heating), Cooling Air Flow Rate: P-High: 717 High: 650 l/sec, Heating Air Flow Rate: Medium: 600 Low: 500 l/sec, R32 Refrigerant, 54/70 dBA, 380-415 Volt 50 Hz 3 PH, 398mm x 1150mm x 650mm Indoor Dimensions, 1300mm x 970mm x 370mm Outdoor Dimensions,-15 to 50 deg C Cooling,-20 to 20 deg C Heating
Key Specifications
| SKU |
MHIFDUA125AVSXWVH
|
|---|---|
| Brand |
Mitsubishi Heavy Industries
|
| Product Type |
Ducted Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDUA125AVSXWVH |
| Cooling Air Flow Rate | P-Hi: 717 Hi: 650 l/sec |
| Cooling Capacity | 12.5 kW |
| Heating Air Flow Rate | Med: 600 Low: 500 l/sec |
| Heating Capacity | 14 kW |
| Indoor Dimensions | 398 mm x 1150 mm x 650 mm |
| Outdoor Dimensions | 1300 mm x 970 mm x 370 mm |
| Power Supply | 380-415 Volt 50 Hz 3 PH |
| Rated Current (Cooling) | 6.4 Amp |
| Sound Level | 54/70 dBA |
| Rated Current (Heating) | 6.2 Amp |
| Refrigerant Type | R32 |
| Temperature | -15 to 50 deg C Cooling-20 to 20 deg C Heating |
