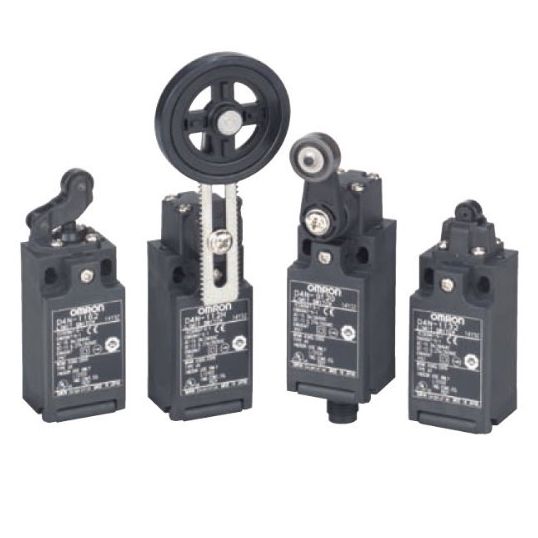

Omron Limit Switch Plunger 1NO-1NC Snap Action Plunger IP67

chevron-left

Description

chevron-down
Limit Switch Plunger, 300 Volt, 50/60 Hz, Plunger Actuator, 1NO+1NC, Snap Action, Screw, 15000000 Cycles, IP67, -30 to 70 deg C, 64 mm Length, 31 mm Width, 31.5 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
4547648030359
SKU
OMRD4N-4131
Brand
Omron
Product Type
Limit Switches

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Lineup includes models with 1NC/1NO, 2NC, 2NC/1NO and 3NC contact forms
  • M12-connector models are also available, saving on labor and simplifying replacement
  • Can be used with both standard loads and microloads
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product D4N-4131
Actuator Type Plunger
Contact Configuration 1NO+1NC Snap Action
Depth 31.5 mm
Frequency 50/60 Hz
IP Rating IP67
Operating Cycles 15000000 Cycles
Terminal Connection Screw
Temperature -30 to 70 deg C
Voltage 300 Volt
Width 31 mm
