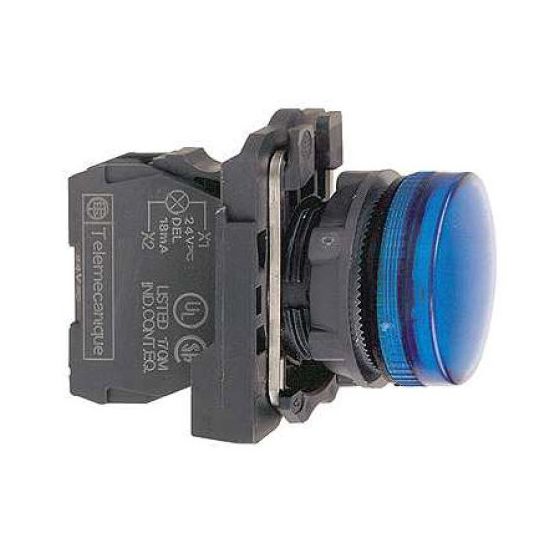

Schneider Pilot Indicator Complete Plastic Body 24VAC/DC LED Blue
Description
Pilot Indicator Complete Plastic Body, Size: 22 mm, 24 Volt AC/DC, Plain Lens, LED, Round, 100000 hr, Blue, Standard Head, Screw Clamp Terminal, Panel Mount, IP66, IP67, IP69, IP69K, NEMA 13/4X, Bezel: Dark Grey Plastic, 42 mm x 30 mm Width x 54 mm Depth, -40 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
3389110136906
|
|---|---|
| SKU |
TEEXB5-AVB6
|
| Brand |
Schneider
|
| Range Name |
Harmony Style 5
|
| Product Type |
Pilot Indicators
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | XB5AVB6 |
| Depth | 54 mm |
| Head Type | Standard |
| Height | 42 mm |
| IP Rating | IP66/67/69/69K |
| Lamp Colour | Blue |
| Lamp Life | 100000 hr |
| Lamp Shape | Round |
| Lamp Type | LED |
| Mounting Method | Panel |
| Lens Type | Plain |
| NEMA Rating | NEMA 13/4X |
| Temperature | -40 to 70 deg C |
| Terminal Connection | Screw Clamp |
| Voltage | 24 Volt AC/DC |
| Width | 30 mm |
