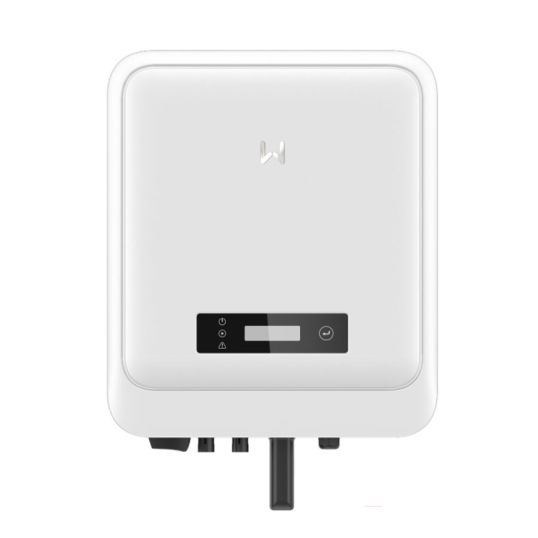

Goodwe DNS G3 Solar Inverter 2 MPPT Single Phase 5kW RS485/WIFI/LAN

Description

The GoodWe DNS G3 Series inverter is specially designed for single-phase residential applications. Integrated with high-current input and DC input oversizing capabilities, the series can bring you optimized power generation and make substantial returns. With its lighter and fanless house fit-in compact design, the DNS G3 inverter provides a reliable power supply yet runs at a super quiet operation below 25dB. The inverter also takes safety measures including optional Arc Fault Failure Interrupter (AFCI) and Type II Surge Protection Device (SPD) on both sides to protect the system from electrical fire and lightning hazards in extreme environments for guaranteed safety.

Key Specifications

SKU	GDWGW5000-DNS-30
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Smart control and monitoring - 24/7 load consumption monitoring, multiple communication protocols supported Superb safety and reliability - optional AFCI preventing electrical fires, optional AC and DC Type II SPD and SPD failure alarm Optimal generation - maximum 16 Amp input current per string,150% DC input oversizing and 110% AC output overloading Friendly and thoughtful design - IP66 ingress protection, low noise level thanks to fanless cooling Smart Control & Monitoring: Stay in control of your energy management with 24/7 load consumption monitoring. Access transparent data to quantify your system's performance. The DNS G3 supports dry contact connection and multiple communication protocols, including Modbus RTU and Sunspec, for incredible communication flexibility. Thoughtful Design: The DNS G3 inverter features an IP66 ingress protection rating, keeping it safe in various environmental conditions. Plus, its fanless cooling design contributes to the low noise level.
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW5000-DNS-30
AC Operating Frequency	50/60 Hz
AC Nominal Voltage	220/230/240 Volt
AC Max. Apparent Power	5 kW
AC Output Current	24 Amp
AC Output Power	5 kW
Connection Type	DC: MC4/AC: Plug and Play
DC Input Voltage	600 Volt
Cooling Method	Natural Convection
DC Nominal Voltage	360 Volt
DC Operating Voltage	40-560 Volt
Display Type	LED/LCD (Optional)/WLAN+APP
European Weighted Efficiency	0.973
IP Rating	IP66
Efficiency	0.979
Max. Operating Altitude	4000 mtr
Number of MPPTs	2
Noise Level	<25 dBA
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Power Factor	1
Total Harmonic Distortion	<3%
Topology	Non-Isolated
