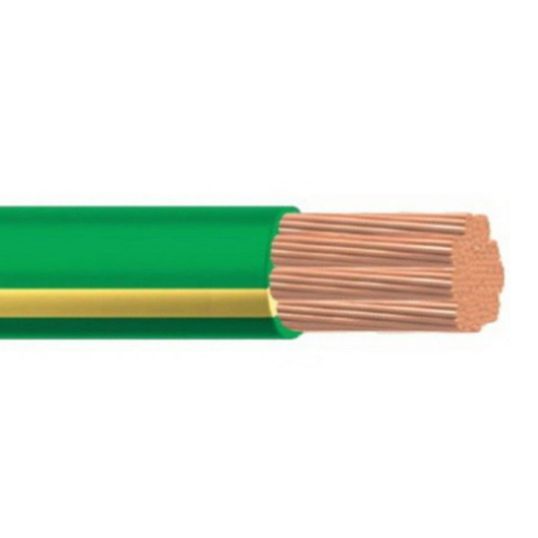

Elcon 70mm Green/Yellow Flexible Wire Heavy Duty V90HT PVC
Description
Flexible Wire, Heavy Duty, 70 mm, Class 5 Annealed Copper, 0.6-1 kV, 231 Amp, 1 Core, 14 mm Overall Diameter, 84 mm Static/126 mm Flexible Bend Radius, 1.4 mm Insulation Thickness, DC: 0.272 MOhm/m Insulation Resistance, V-90HT PVC Insulation, Green/Yellow Insulation, Unsheathed, 90 deg C, AS/NZS 1125 AS/NZS 5000.1
Key Specifications
| SKU |
ELNCF-SIPF70GYM
|
|---|---|
| Brand |
Elcon Cables
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | CF-SIPF70GYM |
| Bend Radius | Static 84 mm - Flexible 126 mm |
| Conductor Size | 70 mm |
| Conductor Type | Class 5 Annealed Copper |
| Current | 231 Amp |
| Insulation Colour | Green/Yellow |
| Insulation Material | V-90HT PVC |
| Insulation Resistance | DC: 0.272 MOhm/m |
| Insulation Thickness | 1.4 mm |
| Overall Diameter | 14 mm |
| Number of Cores | 1 Core |
| Sheath Material | Unsheathed |
| Standards | AS/NZS 1125 AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
