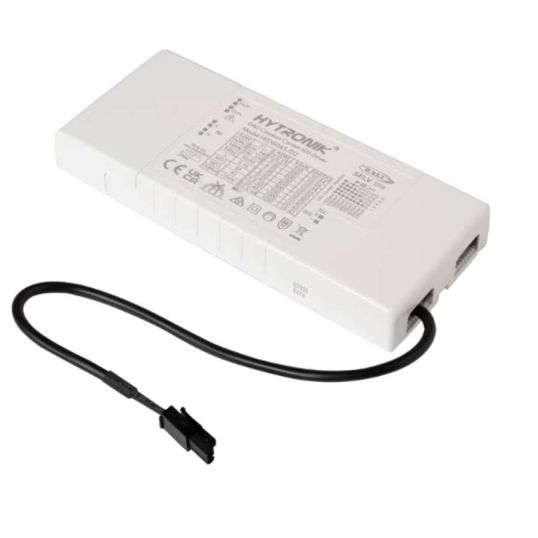

Robus Hytronik DALI Switch Dimmable 45W LED Current Selectable Driver with 30cm Cable & DC Connector IP20

chevron-left

Description

chevron-down
DALI Switch, 220-240 Volt Input Voltage, 45 Watt, 50/60 Hz, IP20, 0.95 Power Factor, White, 20 to 50 deg C, 185 mm Length, 80 mm Width, 23 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
5391370082129
SKU
LEDHED6045/D2
Brand
Robus
Product Type
Switches

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Constant current universal driver suitable for use with SPACE, ATMOS, VIRTUE and MORPH range of products
  • When dimmed above 30%, the driver is deemed flicker free
  • Manual override function in DALI systems enabled by connecting switch dim at the same time allowing manual control of the circuit
  • Output short circuit and over-heat protection with auto-reset
Standard Pack Size 24
UNSPSC Class 39101900
UOM EA
Vendor Product HED6045/D2
Colour White
Height 23 mm
Frequency 50/60 Hz
Input Voltage 220-240 Volt
IP Rating IP20
Power Factor 0.95
Temperature 20 to 50 deg C
Wattage 45 Watt
Width 80 mm
