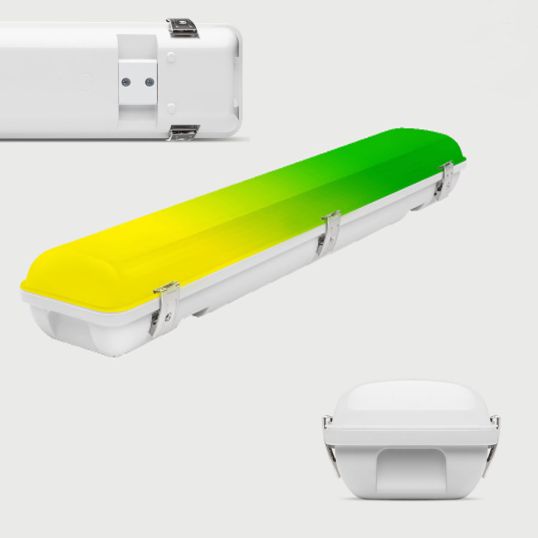

M-Elec Titan X Weatherproof LED Emergency Batten Max 23W Power Select IP65 655x130x88mm Yellow/Green

chevron-left

Description

chevron-down
Emergency LED Batten Weatherproof, 13/16/20/23 Watt, 220-240 Volt AC Input Voltage, 50/60 Hz Input Frequency, LED, 94/91 lm, 50000 hrs, 120 deg Beam Angle, 80 CRI, Non-Dimmable, Surface Mounting, IP65, Yellow/Green, IK10, 0 to 50 deg C, 655 mm Length, 130 mm Width, 88 mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
9348337021772
SKU
MELML-TN60-X-YG-EM
Brand
M-Elec
Range Name
TitanX
Product Type
Emergency Battens

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 5 years warranty
  • Standard features include: 3 colour selection
  • multiple power settings, giant terminal blocks, marine grade external hardware
  • multiple side and rear entry points, and a wide mounting footprint
  • Sensor models feature 0-10 Volt dimmable drivers with the sensor being tuneable for sensitivity, time, luminance, and a variety of holding patterns
  • Our innovative Yellow/Green version can switch between yellow or green by the user with an internal switch
Standard Pack Size 1
UNSPSC Class 39111700
UOM EA
Vendor Product ML-TN60-X-YG-EM
Average Lamp Life 50000 hrs
Beam Angle 120 deg
Colour Yellow/Green
CRI 80
Dimmable Non-Dimmable
Height 88 mm
Impact Rating IK10
Input Frequency 50/60 Hz
Input Voltage 220-240 Volt AC
IP Rating IP65
Lamp Type LED
Lumens 94/91 lm
Mounting Method Surface
Temperature 0 to 50 deg C
Width 130 mm
Wattage 13/16/20/23 Watt
