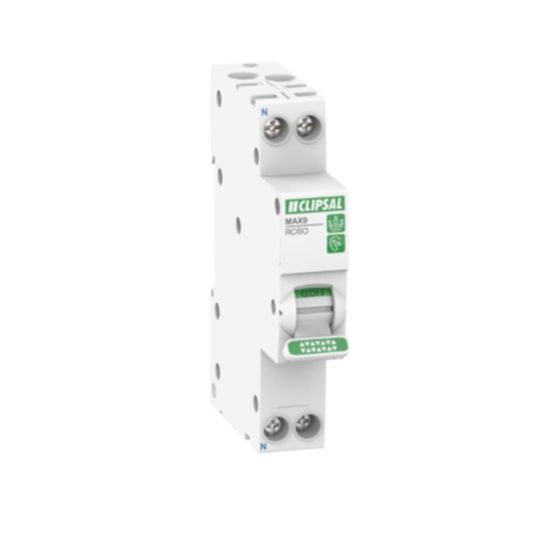

Clipsal Residual Current Breaker with Overcurrent Protection (RCBO) Type A 25Amp 6kA 30mA C Curve 1 + N Pole

This MAX9 product is an arc fault detection RCBO. It is a 1P+N circuit breaker with 1 protected pole, 10 Amp in rated current at 30 deg C and C tripping curve. The operating frequency is 50Hz. The earth leakage protection class is type A with a sensitivity of 30 mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity goes up to 6000 Amp at 240 Volt AC conforming to IEC 61009 standard. This MAX9 circuit breaker is compatible with TN-S, TT and IT earthing system. It has an electrical endurance going up to 10000 cycles and mechanical endurance going up to 20000 cycles. It detects arc fault who comes from fire start and is constantly analysing electric settings. It isolates involved circuit automatically before first flame appearance. It is particularly adapted for circuit protection where the fire start is the most important in domestic installation (outdoors, rooms). It has a RCM quality label. The Ue rated operational voltage is 240 Volt AC. The Ui rated insulation voltage is 440 Volt AC. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on DIN rail for modular installation. The width in 9 mm pitches is 4. The dimensions are (W) 36 mm x (H) 91 mmx (D) 75 mm. The product colour is white (RAL9003). The product weight is 237g. According to IEC 60529 standard, the degree of protection is IP20. The pollution degree is 2. The operating temperature is from -25 deg C to +70 deg C. The storage temperature is from -40 deg C to +85 deg C. This product is complies with EN/IEC 62606 standard.
