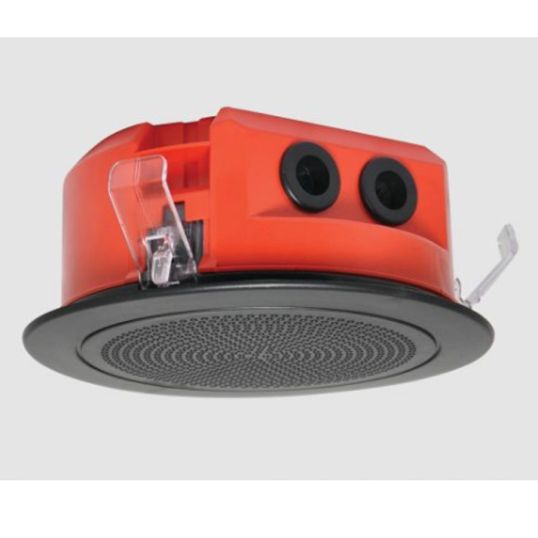

Redback EWIS Ceiling Speaker 5W 100V 100mm Black Grille

chevron-left

Description

chevron-down
Ceiling Speaker EWIS, 0.33/0.66/1.25/2.5/5 Watt, 30/15/8/4/2 kOhm Impedance, 4 Way Screw Terminal Connection, ABS Plastic, -25 to 55 deg C, 159 mm Diameter x 65 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9321758234969
SKU
RDBC2161A
Brand
Redback
Product Type
Speakers

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Press to fit rubber push through grommet
  • Excellent speech intelligibility
  • Low profile design is only 65 mm deep
  • Tuned PA driver designed to meet the latest fire standards
  • High quality speaker driver developed for BGM, paging and emergency warning applications
  • Patented 3-way latching ensures a neat, sag free installation
  • Fitted with 4 way wire protect terminal for loop in, loop out wiring
  • Fitted with cable restraint plate and flame retardant safety cover
  • Fitted with supervisory capacitor for line monitoring
  • Assembled in Australia
Standard Pack Size 24
UNSPSC Class 39121800
UOM EA
Vendor Product C2161A
Dimensions 159 mm Diameter x 65 mm Depth
Impedence 30/15/8/4/2 kOhm
Material ABS Plastic
Connection Type 4 Way Screw Terminal
Power Rating 0.33/0.66/1.25/2.5/5 Watt
Temperature -25 to 55 deg C
