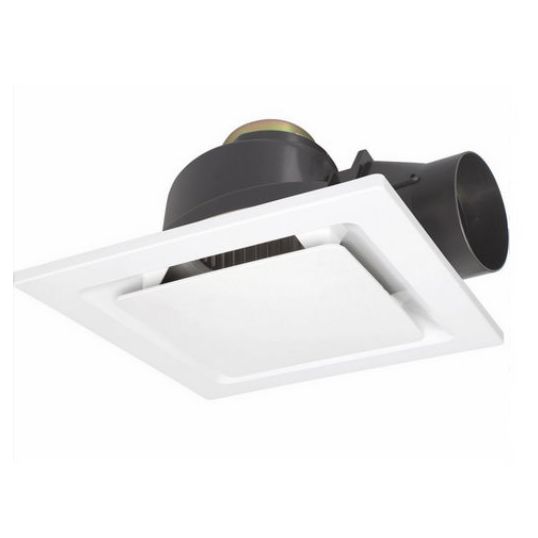

Brilliant Lighting Exhaust Fan Square 325mm 240 Volt ?320 cu-m/hr 290mm Cut-Out ?45 dB White

chevron-left

Description

chevron-down
The Sarico-II square exhaust fan is a contempary style that will complement modern homes. With its smart design and efficient motor this exhaust fan will effortlessly ventilate your room, removing excess steam and odours.

Key Specifications

chevron-down
Barcode (EAN-13)
9312641181941
SKU
BRI18194/05
Brand
Brilliant Lighting
Range Name
Sarico
Product Type
Exhaust fans

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • High velocity exhaust fan
  • Easy installation clamps to secure fan into place
  • 150mm side exhaust duct
  • IPX4 water resistant rating
  • Removable fascia for easy cleaning
  • Exhaust damper to prevent drafts
  • Requires a switched surface socket for DIY installation
  • 3 year replacement warranty
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product 18194/05
Air Flow Cubic Meters per Hour 320 cu-m/hr
Air Flow Litres per Second 88 l/sec
Colour White
Duct Size 150 mm
Cut-Out Size 290 mm
Fan Size 325 mm
IP Rating IPX4
Height 194 mm
Mounting Method Ceiling
Motor Type Ball Bearing
Noise Level 45 dB
Shape Square
Voltage 240 Volt
Width 325 mm
Wattage 28 Watt
