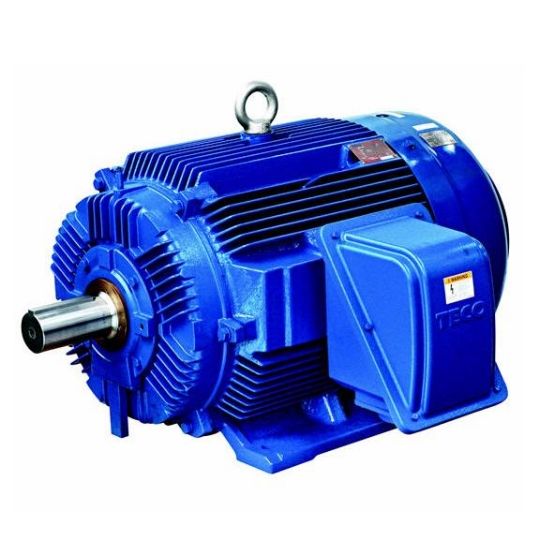

Teco Electric Motor Premium High Efficiency Squirrel Cage Induction 2P 5.5kW 3Ph 415V Shaft 38mm D132S Frame Foot Mount

chevron-left

Description

chevron-down
Electric Motor Premium Severe Duty High Efficiency Squirrel Cage Induction, 380/415 Volt AC, 9.82 Amp, 5.5 kW, 50 Hz, 3 Phase, 2930 rpm, 2 Pole, IP66, Frame: D132S, Shaft Size: 38 mm, Bi-Directional Rotation, Duty Cycle: S1, Service Factor: 1/1.15 p.u at Class B/F, Ball Bearing, Torque: 17.9 N/m, Foot Mount, Insulation Class: Class F, ?80 deg C, Cast Iron, Blue, 454 mm Length x 310 mm Height

Key Specifications

chevron-down
SKU
TEO003/0005D2S
Brand
Teco
Range Name
Max E3 Premium
Product Type
Motors Premium HE

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • True IP66 with porous drain plugs
  • Class F insulation system
  • Superior inverter rated insulation
  • Precision and rugged cast iron construction
  • Typical temperature rise less than Class E
  • 1.15 service factor at 40 deg C ambient
  • Suitable for 55 deg C ambient at rated output
  • TECO renowned grease relief system
  • Thermistors for frames D160 and larger
  • IECEX Ex e, Ex nA ready to order
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product 003/0005D2S
Current 9.82 Amp
Colour Blue
Bearing Type Anti Fiction Ball
Frame Size D132S
Frequency 50 Hz
Height 310 mm
Horsepower 5.5 kW
Insulation Class Class F
IP Rating IP66
Material Cast Iron
Mounting Method Foot
Number Of Poles 2 Pole
Phase 3 Phase
Shaft Size 38 mm
Rotation Bi Directional
Service Factor 1/1.15 p.u at Class B/F
Speed 2930 rpm
Temperature ?80 deg C
Torque Rating 17.9 N/m
Voltage 380-415 Volt AC
