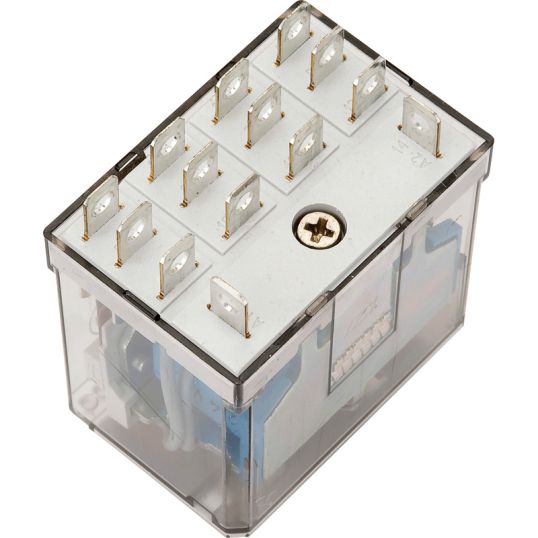

Finder Miniature Power Relay Plug-In 4P 4CO 12A 12VDC 14 Pin Flat
Description
Miniature Power Relay, 250 Volt AC, 12 Volt DC, 12 Amp, 0.55 kW, 14 Pin Flat, 4 Pole, 4CO, 123 Ohm, Operating Time: 4 Breaking/10 Making ms, 100000 Cycles, Plug-In Mount, Silver Nickel, -40 to 70 deg C, 37.1 mm Height, 27.7 mm Width, 40.8 mm Depth
Key Specifications
| Barcode (EAN-13) |
8012823324111
|
|---|---|
| SKU |
FID56.3412VDC
|
| Brand |
Finder
|
| Range Name |
Series 56
|
| Product Type |
Power Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | 563412VDC |
| Contact Configuration | 4 Changeover |
| Depth | 40.8 mm |
| Height | 37.1 mm |
| Current | 12 Amp |
| Mounting Method | Plug In |
| Contact Material | Silver Nickel |
| Number Of Poles | 4 Pole |
| Operating Coil Voltage | 12 Volt DC |
| Operating Cycles | 100000 Cycles |
| Pin Configuration | 14 Pin Flat |
| Operating Time | 4 Breaking/10 Making ms |
| Power Rating | 0.55 kW |
| Resistance | 123 Ohm |
| Temperature | -40 to 70 deg C |
| Voltage | 250 Volt AC |
| Width | 27.7 mm |
