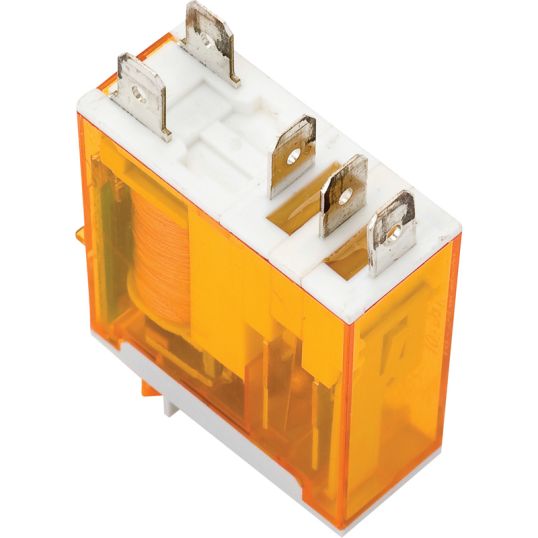

Finder Miniature Relay Plug In Or Faston Connection 1P 1CO 16A 48V 5 Pin Flat
Description
Miniature Relay Plug In Or Faston Connection, 250 Volt AC, 48 Volt AC, 16 Amp, 0.55 kW, 5 Pin Flat, 1 Pole, 1CO, 1350 Ohm, Operating Time: 5 Breaking/15 Making ms, 100000 Cycles, Plug-In Mount/Faston Connection, Silver Nickel, -40 to 70 deg C, 32.8 mm Height, 29 mm Width, 12.4 mm Depth
Key Specifications
| Barcode (EAN-13) |
8012823302614
|
|---|---|
| SKU |
FID46.61.005448VAC
|
| Brand |
Finder
|
| Range Name |
Series 46
|
| Product Type |
Plug-in Relays
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39122300 |
| UOM | EA |
| Vendor Product | 4661005448VAC |
| Contact Configuration | 1 Changeover |
| Depth | 12.4 mm |
| Height | 32.8 mm |
| Current | 16 Amp |
| Mounting Method | Plug-In/Faston Connection |
| Contact Material | Silver Nickel |
| Number Of Poles | 1 Pole |
| Operating Coil Voltage | 48 Volt AC |
| Operating Cycles | 100000 Cycles |
| Pin Configuration | 5 Pin Flat |
| Operating Time | 5 Breaking/15 Making ms |
| Power Rating | 0.55 kW |
| Resistance | 1350 Ohm |
| Temperature | -40 to 70 deg C |
| Voltage | 250 Volt AC |
| Width | 29 mm |
