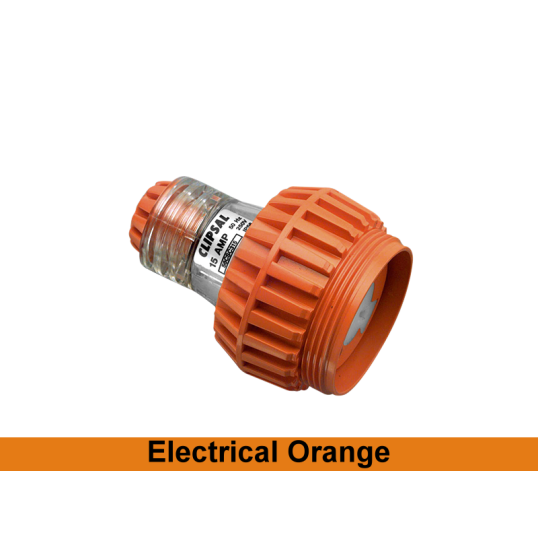

Clipsal Extension Socket Appliance Connector Weatherproof 1Ph 15A 3 Pin Flat Electric Orange IP66

$ClipsalNew\C0000368-EO.png$

Description

Appliance Extension Socket Weatherproof, 250 Volt, 15 Amp, Straight Angle, 1 Phase Phase, 3 Pin Flat, Screw Connection, 0.75-1.5 sq-mm Terminal Capacity, Cable Gland Cable Entry, M20 Cable Gland Size, 7-16 mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, -25 to 75 deg C, 85 mm Height, 85 mm Width, 120 mm Depth

Key Specifications

Barcode (EAN-13)	9311554069742
SKU	CLI56CSC315
Brand	Clipsal
Range Name	56 Series
Product Type	Extension Sockets

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	56CSC315-EO
Angle	Straight
Cable Entry	Cable Gland
Cable Gland Size	M20
Cable Nominal Diameter	7-16 mm
Colour	Orange
Current	15 Amp
Connection Type	Screw
Depth	120 mm
Height	85 mm
Phase	1 Phase
Material	Polycarbonate
IP Rating	IP66
Pin Configuration	3 Pin Flat
Terminal Capacity	0.75-1.5 sq-mm
Temperature	-25 to 75 deg C
Voltage	250 Volt
Width	85 mm
