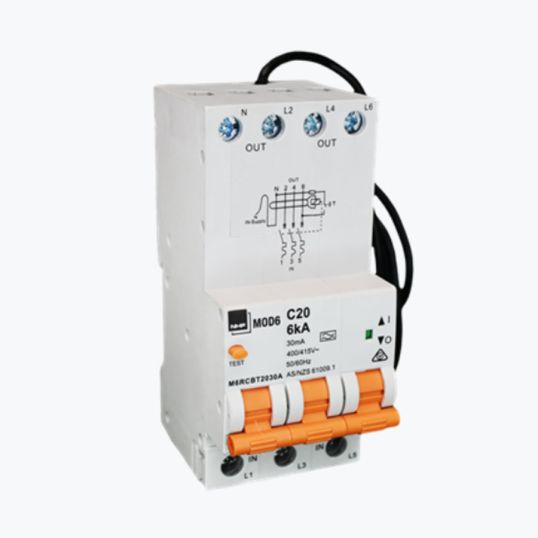

NHP MOD6 RCBO 6kA 3 Pole+N 50A 30mA Type A C Curve 54mm

chevron-left

Description

chevron-down
RCBO Circuit Breaker, 50 Amp, 400/415 Volt AC, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, Type A Frame, 3 Pole + N, C Curve, IP40 (Inside), IP20 (Outside), DIN35 Rail Mounting,-5 to 40 deg C, 117.5mm Height, 54mm Width, 71.6mm Depth

Key Specifications

chevron-down
SKU
NHPM6RCBT5030A
Brand
NHP
Range Name
MOD6
Product Type
Combination RCBO

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • M6RCBT MOD6 RCBOs feature 6kA short circuit rating
  • C-Curve for general light, power and motor starting applications
  • Type A RCD
  • 30mA sensitivity for general personnel protection applications
  • Compact 3P (54mm) width space saving
  • Neutral pigtail (900mm) saving cable and installation time
  • Padlockable and sealable toggle restricts unauthorised action
  • Free tripping mechanism even if toggle is locked or sealed ON or OFF
  • Fast connection pin/fork busbar comb or MOD6 busbar chassis
  • Suits Concept One panelboards
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product M6RCBT5030A
Current 50 Amp
Height 117.5mm
Depth 71.6mm
Frequency 50/60 Hz
Interrupt Capacity 6 kA
Mounting Method DIN Rail
IP Rating IP40 Inside/IP20 Outside
Number Of Poles 3 Pole
Temperature -5 to 40 deg C
Trip Characteristic C Curve
Trip Sensitivity 30 mA
Voltage 400-415 Volt
Width 54mm
