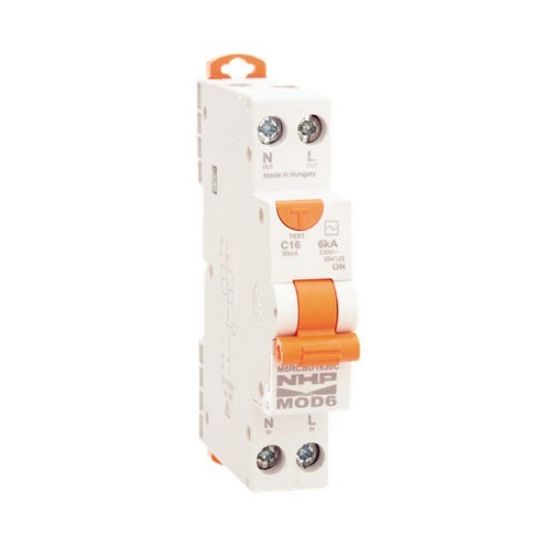

NHP Combination RCD Circuit Breaker RCBO 1P+ N 20 Amp 240VAC 6 kA 1Module 18mm DIN 35 Rail

Description

Residual Current Device, 240 Volt, 20 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 1 Module 18 mm, 16 sq-mm/25 sq-mm Flexible/25 sq-mm/16 sq-mm Rigid Terminal, Pin Connection, IP20/40, DIN Rail Mounting, 5 to 55 deg C, 86 mm Height, 18 mm Width, 76 mm Depth

Key Specifications

Barcode (EAN-13)	5413656946755
SKU	NHPM6RCBD2030CAN
Brand	NHP
Range Name	MOD6

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Compact double screw RCBO Type A RCD with switched neutral 30 mA sensitivity for general personnel protection applications 10 mA sensitivity option for higher risk applications C trip curve for general light and power applications Fast connection special pin bus bar comb Suits pole-covers and loadcentres 10 mA units compliant with Type 1 requirements
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	M6RCBD2030CAN
Current	20 Amp
Connection Type	Pin
Height	86 mm
Depth	76 mm
Modules	1 Module 18 mm
Frequency	50/60 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail
IP Rating	IP20/40
Number Of Poles	1 Pole
Temperature	5 to 55 deg C
Trip Characteristic	C Curve
Terminal Connection	16 sq-mm/25 sq-mm Flexible - 25 sq-mm/16 sq-mm Rigid
Trip Sensitivity	30 mA
Voltage	240 Volt
Width	18 mm
