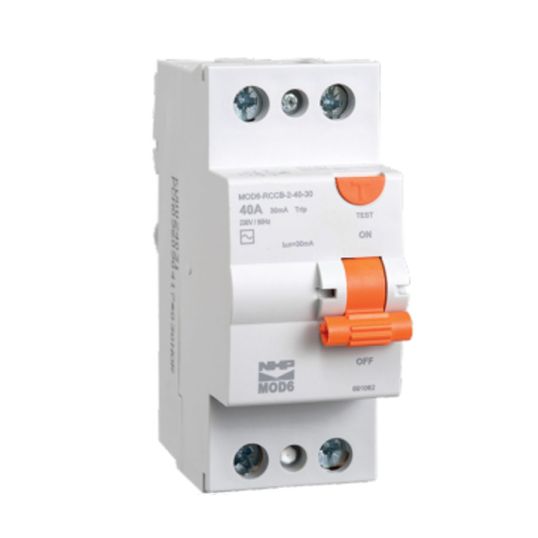

NHP MOD6 Residual Current Circuit Breaker 1P+N 40A 6kA 30mA Type A

chevron-left

Description

chevron-down
Residual Current Circuit Breaker, 230-415 Volt, 40 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 1 + N Pole, IP20/40, DIN Rail Mounting, 10000 Cycles Electrical Life, 20000 Cycles Mechanical Durability, 1.5-50 sq-mm, 5 Nm Tightening Torque, 5 to 55 deg C, 86 mm Height, 36 mm Width, 76 mm Depth

Key Specifications

chevron-down
SKU
NHPMOD6RCCB24030A
Brand
NHP
Range Name
MOD6
Product Type
Residual Current Circuit Breakers

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • MOD6 RCCBs feature 6 kA conditional short circuit rating
  • Type A RCD
  • 30 mA sensitivity featured as standard simplifying the selection for personnel protection applications
  • Fast connection pin/fork bus bar comb or bus bar chassis
  • Suits pole covers and load centres
  • Approval No NSW17482 or RCM Mark
Standard Pack Size 1
UNSPSC Class 39121600
UOM EA
Vendor Product MOD6RCCB24030A
Depth 76 mm
Current 40 Amp
Conductor Size 1.5-50 sq-mm
Frequency 50/60 Hz
Electrical Life 10000 Cycles
Height 86 mm
Interrupt Capacity 6 kA
IP Rating IP20/40
Mechanical Durability 20000 Cycles
Mounting Method DIN Rail
Number Of Poles 1 Pole
Temperature 5 to 55 deg C
Tightening Torque 5 Nm
Trip Sensitivity 30 mA
Voltage 230-415 Volt
Width 36 mm
