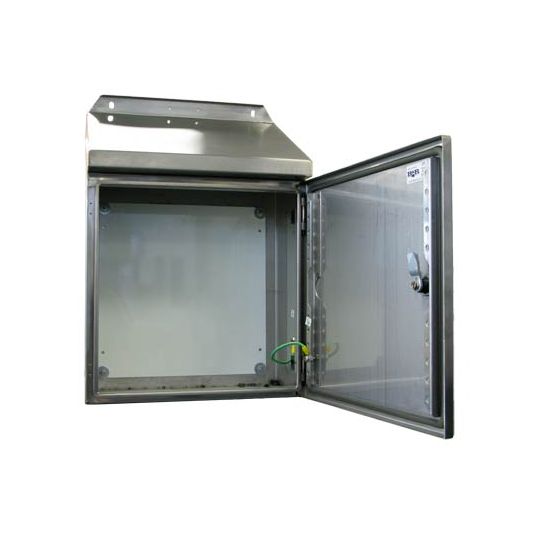

B&R Enclosure Single Door Inclined Roof General Purpose IP66 Stainless Steel Number 4 Finish 400 Wx200 Dx400 Hmm

chevron-left

Description

chevron-down
Enclosure Single Door Inclined Roof, 316 Stainless Steel Housing, 316 Stainless Steel Door, 1 Door, Surface Mounting, Steel Mounting Plate, Neoprene Gasket, IP66, N4 Surface, 400 mm Height, 400 mm Width, 200 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9321228023628
SKU
B&RSR04042/S
Brand
B&R
Range Name
Incline SR
Product Type
Enclosures Metal

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 30 degree sloping roof designed to prevent solids from building up on the surface
  • Easy installation with top and bottom mounting flanges
  • Fully welded construction
  • Corrosion resistant 1.5 mm thick 316 stainless steel
  • Flexible equipment mounting options including door rails and steel mounting pan
  • Specially designed gutter system featuring a 20 mm extended roof
  • local control stations, mini control stations, mini control consoles or motor isolation control stations applications
Standard Pack Size 1
UNSPSC Class 39121300
UOM EA
Vendor Product SR04042/S
Door Material 316 Stainless Steel
Depth 200 mm
Finish N4 Surface
Gasket Material Neoprene
Height 400 mm
Housing Material 316 Stainless Steel
IP Rating IP66
Mounting Method Surface
Mounting Plate Material Steel
Number of Doors 1
Width 400 mm
