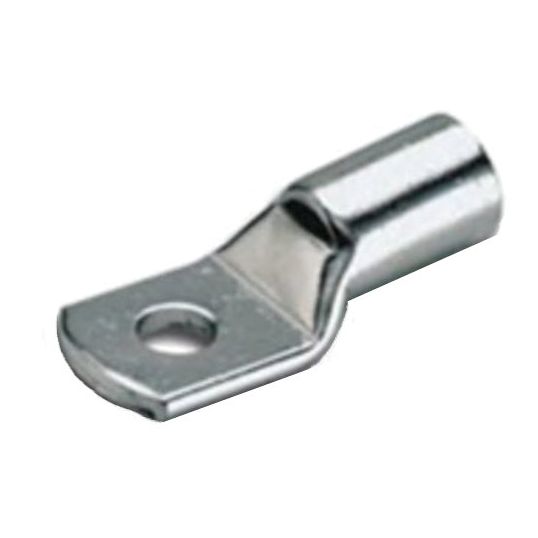

CJS Crimp Lug Standard Heavy Duty with Inspection Hole Copper 10mm M8 Stud 29mm OAL

chevron-left

Description

chevron-down
Heavy Duty Compression Cable Lug, 10 mm, M8 Stud, Standard Barrel Type, 10 mm Barrel Length, 29 mm Overall Length, 1 Hole, 4.7 mm Inside Diameter, 7.1 mm Outside Diameter, 14 mm Lug Width, 15 mm Lug Length, Annealed Electrolytic Copper Body, Copper, Tin Plated, -55 to 155 deg C, With Inspection Hole

Key Specifications

chevron-down
SKU
CJS-LUG-CU-010-M8
Brand
CJS

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Electrolytic copper 99.95% purity
  • Annealed material ensures optimal crimping properties
  • Internal chamfer for easy cable insertion
  • For flexible and stranded copper conductors
  • Voltage rating - according to AS/NZS4325-Part 1 up to 30 kV (Um 36 kV)
  • Double thickness provides a strong ring tongue
  • 100% copper tin plated for corrosion resistance
  • Gauge and size clearly marked for identification
Standard Pack Size 1
UNSPSC Class 39121400
UOM EA
Vendor Product CJS-LUG-CU-010-M8
Barrel Length 10 mm
Barrel Type Standard
Body Material Annealed Electrolytic Copper
Conductive Material Copper
Conductor Size 10 mm
Finish Tin Plated
Inside Diameter 4.7 mm
Lug Length 15 mm
Lug Width 14 mm
Number of Holes 1
Outside Diameter 7.1 mm
Overall Length 29 mm
Please Note with Inspection Hole
Stud Size M8
Temperature -55 to 155 deg C
