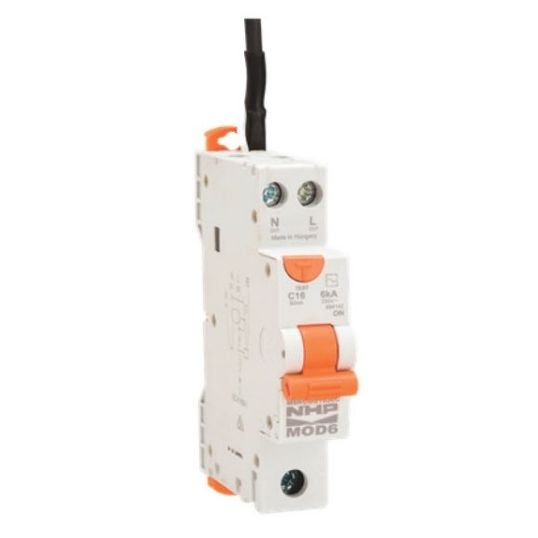

NHP Combination RCD Circuit Breaker RCBO 1P+ N 20 Amp 240V AC 6 kA 18mm DIN 35 Rail

$NHP\NHP_M6RCBSXXXXCAN.jpg$

Description

Residual Current Device, 240 Volt, 20 Amp, 50/60 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, 18 Module, 16 sq-mm/25 sq-mm Flexible/25 sq-mm/35 sq-mm Rigid Terminal, Pin/Fork Connection, IP20/40, DIN Rail Mounting, 5 to 55 deg C, 86 mm Height, 18 mm Width, 76 mm Depth

Key Specifications

SKU	NHPM6RCBS2030CAN
Brand	NHP
Range Name	MOD6

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Compact single screw RCBO features a neutral pigtail saving cable and installation time Type A RCD with switched neutral 30 mA sensitivity for general personnel protection applications 10 mA sensitivity option for higher risk applications C trip curve for general light and power applications Fast connection pin/fork bus bar comb or bus bar chassis Suits pole covers, loadcentres and Concept One panelboards
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	M6RCBS2030CAN
Connection Type	Pin/Fork
Depth	76 mm
Frequency	50/60 Hz
Height	86 mm
Interrupt Capacity	6 kA
IP Rating	IP20/40
Modules	18 Module
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	5 to 55 deg C
Trip Characteristic	C Curve
Terminal Connection	16 sq-mm / 25 sq-mm Flexible / 25 sq-mm / 35 sq-mm Rigid
Trip Sensitivity	30 mA
Width	18 mm
