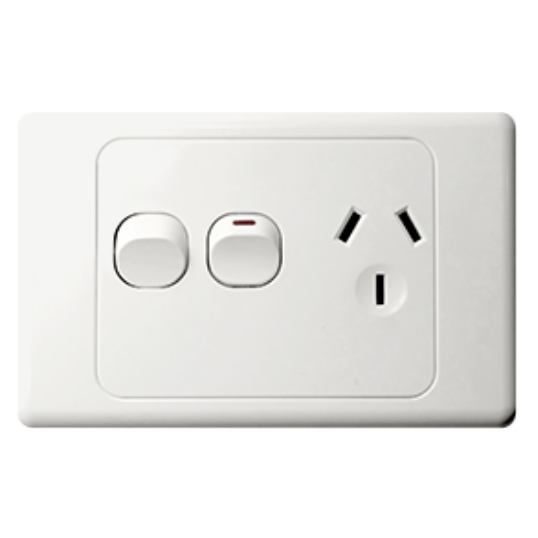

GSME GPO Switched Outlet 1 Gang 10A 250V w/Extra Switch White

chevron-left

Description

chevron-down
GPO Switched Outlet, 250 Volt, 10 Amp, 1 Gang, Mounting Centres: 84 mm, UV-Stabilized Polycarbonate, White, 74 mm Height, 117 mm Width, 24.5 mm Depth

Key Specifications

chevron-down
SKU
315COPPSW1G
Brand
GSME Trader
Range Name
Cougar
Product Type
GPO Standard

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Uses brass tunnel terminals that have the screws backed out for easier installation of cabling
  • Power point terminals have 5.7 mm bore to suit 4 x 2.5 sq-mm cable Switch terminals have 3.8 mm bore to suit 3 x 1.5 sq-mm
  • Fits standard Australian wall boxes and mounting accessories that use 84mm mounting centres
  • Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow
  • Switch has combination head screws for terminals
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product 315COPPSW1G
Current 10 Amp
Colour White
Depth 24.5mm
Height 74mm
Material UV-Stabilized Polycarbonate
Number Of Gangs 1 Gang
Mounting Centres 84mm
Voltage 250 Volt
Width 117mm
