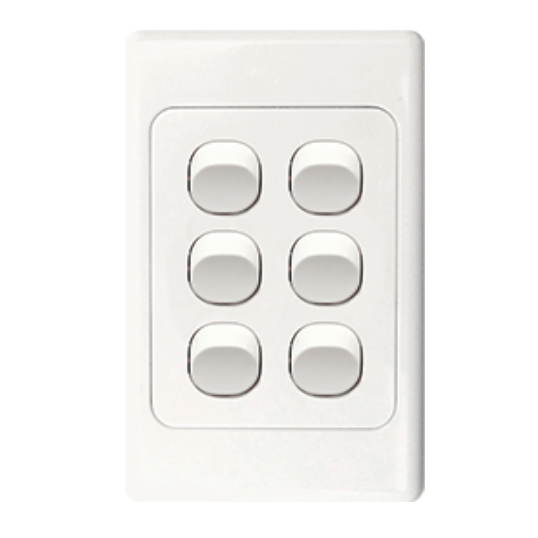

GSME Switch Cover Plate Flush Mount Standard 6 Gang 16A/10AX 250V 2 Way Vertical White

$GSME\GSME_COSWV6G.png$ $GSME\GSME_COSWV6G.png$

Description

Switch Cover Plate Standard, 250 Volt, 10 AX/16 Amp, 6 Gang, Vertical, Mounting Centres: 84 mm, Flush Mount, Terminal Capacity: 3 x 1.5 mm, 2 Way, Screw Connection, UV-Stabilized Polycarbonate, White, 117 mm Height, 74 mm Width, 25.8 mm Depth

Key Specifications

SKU	315COSWV6G
Brand	GSME Trader
Range Name	Cougar
Product Type	Covers & Grids

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Switches are 2 way with looping terminal and suit 3 x 1.5 sq-mm cabling with 4.1 mm bore Switch has combination head screws for terminals Covers, plates and dollies are made from UV stabilised polycarbonate to avoid discolouring to yellow The clip-in switch mechanism is able to be used and clip into other trader and competitor switch plate ranges
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	315COSWV6G
Colour	White
Connection Type	Screw
Current	10 AX/16 Amp
Depth	25.8mm
Height	117mm
Material	UV-Stabilized Polycarbonate
Mounting Centres	84 mm
Mounting Method	Flush
Number Of Gangs	6 Gang
Number Of Ways	2 Way
Orientation	Vertical
Terminal Capacity	3 x 1.5 sq-mm
Voltage	250 Volt
Width	74mm
