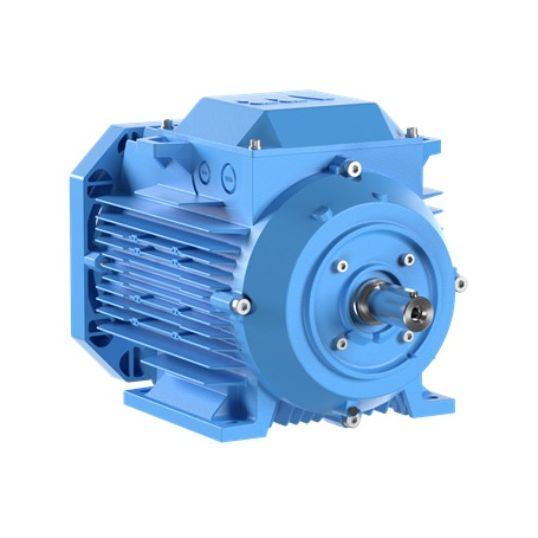

ABB Electric Motor Squirrel Cage Induction 4P 0.25kW 3Ph 460Y/230D/400YV 71A Frame Foot Mount

chevron-left

Description

chevron-down
Electric Motor Squirrel Cage Induction, 460 Y/230 D/400 Volt, 0.7 Y/1.31 D/0.76 Amp, 0.25 kW, 50/60 Hz, 3 Phase, 1743 Y/1430 D/1430 rpm, 4 Pole, IP55, Frame: 71A, Shaft Size: 14 mm Drive End, 11 mm Non-Drive End, Duty Cycle: S1, Ball Bearing, Torque: 1.39 Y/1.67 D/1.67 Y N/m, Foot Mount, Insulation Class: ICLF, 40 deg C, Aluminium, Munsell Blue, 267 mm Length x 130 mm Width x 180 mm Height, Please Note: Terminal box top

Key Specifications

chevron-down
SKU
ABB3GAA072311-ASE
Brand
ABB
Range Name
M3AA
Product Type
Motors SCIM

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • ABB has designed a motor that is multi-labeled and certified for use virtually anywhere
  • The motors are harmonized to IEC-CENELEC power and frame size standards
  • Efficiency must meet NEMA minimum efficiency requirements
  • Outputs defined, no derating allowed
Standard Pack Size 1
UNSPSC Class 26101100
UOM EA
Vendor Product 3GAA072311-ASE
Current 0.7 Y/1.31 D/0.76 Y A
Colour Munsell Blue
Bearing Type Ball
Frame Size 71A
Frequency 50/60 Hz
Height 180 mm
Horsepower 0.25 kW
Insulation Class ICLF
IP Rating IP55
Material Aluminium
Mounting Method Foot
Number Of Poles 4 Pole
Phase 3 Phase
Please Note Terminal box top
Shaft Size 14 mm Drive End/11 mm Non-Drive End
Speed 1743 Y/1430 D/1430 Y rpm
Temperature 40 deg C
Torque Rating 1.39 Y/1.67 D/1.67 Y N/m
Voltage 460Y-230D-400Y Volt
Width 130 mm
