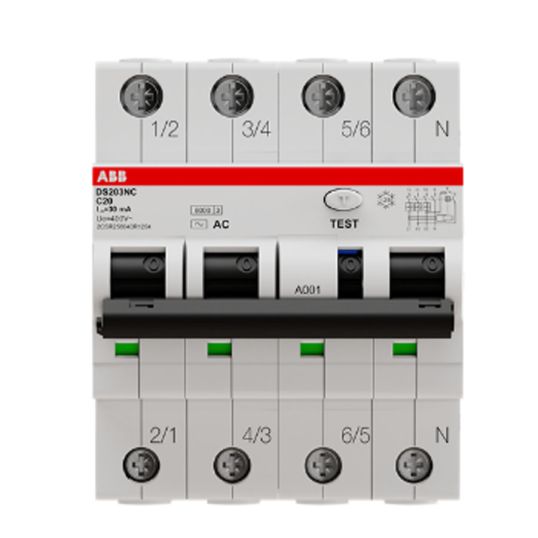

ABB RCBO 3P+N 10kA 20A C Curve 30mA Type A 3 Module Chassis Mount
Description
Combination RCD Circuit Breaker RCBO, 400/415 Volt, 20 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 3 + N Pole, 3 Module, Cage Connection, IP20, Chassis Mounting, 25 to 55 deg C, 117.5 mm Height, 53.4 mm Width, 71.6 mm Depth
Key Specifications
| Barcode (EAN-13) |
6941593442102
|
|---|---|
| SKU |
ABBDSE203NMC20A30
|
| Brand |
ABB
|
| Product Type |
Combination RCBO
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | DSE203NMC20A30 |
| Current | 20 Amp |
| Connection Type | Cage |
| Height | 117.5 mm |
| Depth | 71.6 mm |
| Modules | 3 Module |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 10 kA |
| Mounting Method | Chassis |
| IP Rating | IP20 |
| Number Of Poles | 3 Pole |
| Temperature | 25 to 55 deg C |
| Trip Characteristic | C Curve |
| Trip Sensitivity | 30 mA |
| Voltage | 400-415 Volt |
| Width | 53.4 mm |
