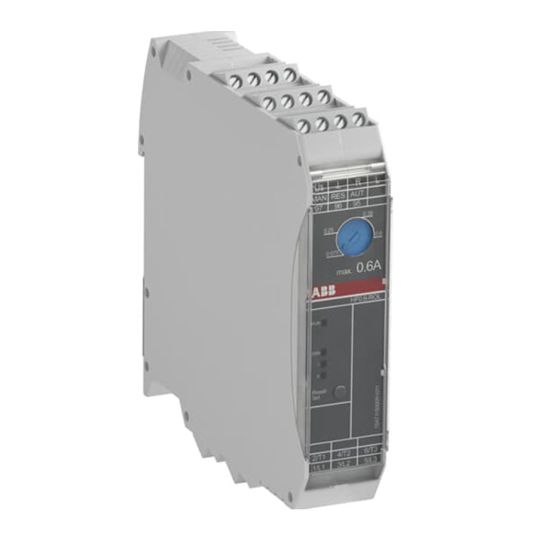

ABB HF-ROL Range Motor Starter Reversing Electronic Compact 0.18kW 42-550V 0.075-0.6A IP20

chevron-left

Description

chevron-down
Motor Starter Reversing, 42-550 Volt AC, 0.6 Amp, 50/60 Hz, 0.18 kW, 3 Pole, 0.075-0.6 Amp Setting Range, Screw Terminal, ROL Starter w/Overload Protection, IP20, DIN Rail Mounting, 10000 Mechanical Cycles, 30000000 Electrical Cycles Operating Cycles, -25 to 70 deg C, 99 mm Height x 22.5 mm Width x 114.5 mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
4013614515545
SKU
ABBHF0.6-ROL-24VDC
Brand
ABB
Product Type
Motor Starters Reversing

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39121500
UOM EA
Vendor Product HF0.6-ROL-24VDC
Action ROL Starter w/Overload Protection
Connection Type Screw
Current 0.6 Amp
Depth 114.5mm
Frequency 50/60 Hz
Height 99mm
IP Rating IP20
Operating Cycles Mechanical: 10000 Cycle, Electrical: 30000000 Cycle
Operating Temperature -25 to 70 deg C
Setting Range 0.075-0.6 Amp
Voltage 42-550 Volt AC
Wattage 0.18 kW
Width 22.5mm
