Std Pack Size
1
OUR P/N:
ABBS203C100

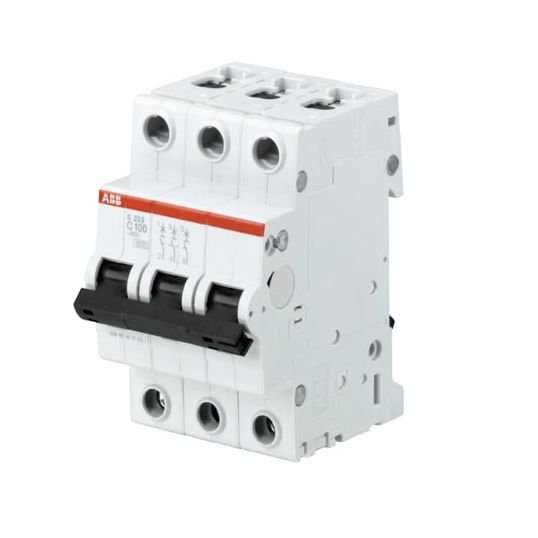

Miniature Circuit Breaker C Curve C Curve, 400/440 Volt AC, 100 Amp, 50/60 Hz, Interrupt Capacity: 6 kA, 52.5mm Module Width, Number of Poles: 3, Trip Characteristic: C Curve, Toggle Actuator, 3 N/m Tightening Torque, 4 to 35 mm Flexible, 2.5 to 50 mm Rigid Terminal Capacity, IP20, 10000 Cycles, DIN Rail, Light Grey,-25 to 55 deg C, 88mm Height x 52.5mm Width x 69mm Depth
Additional Information
| Brand | ABB |
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | S203C100 |
| Interrupt Capacity | 6 kA |
| Number Of Poles | 3 Pole |
| Product Type | Mini Circuit Breakers |
| Depth | 69mm |
| Height | 88mm |
| Colour | Light Grey |
| Electrical Life | 10000 Cycles |
| Width | 52.5mm |
| Temperature | -25 to 55 deg C |
| Tightening Torque | 3 N/m |
| IP Rating | IP20 |
| Modules | 52.5mm |
| Frequency | 50/60 Hz |
| Actuator Type | Toggle |
| Mounting Method | DIN Rail |
| Current | 100 Amp |
| Voltage | 400-440 Volt |
