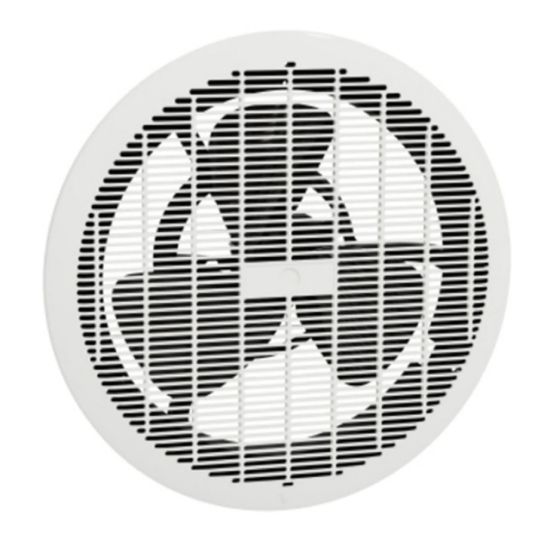

Airflow Ceiling Exhaust Fan 40W 358cu-m/hr 250mm White
Description
Airflow ceiling exhaust by Schneider Electric is a reliable exhaust fan for general air extraction applications. It is provided with low profile grille that can be easily removed for cleaning. It has excellent capacity to exhaust air. Its Ue rated operational voltage is 230VAC at 50 Hz. The load handling of exhaust is 40W. This device is designed to be surface/recessed mounted. The dimensions of the product are Diameter 345 mm x depth 110mm. It is made of ABS (acrylonitrile butadiene-styrene). The color of the product is white. It reaches IPx4 degree of protection. Airflow products are economical and are having efficient air movement solutions. High air flow for everyday needs.
Key Specifications
| Barcode (EAN-13) |
3606486373903
|
|---|---|
| SKU |
AIRCE250N
|
| Brand |
Airflow
|
| Product Type |
Exhaust fans
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 40101600 |
| UOM | EA |
| Vendor Product | CE250N |
| Air Flow Cubic Meters per Hour | 358 cu-m/hr |
| Colour | White |
| Current | 0.32 Amp |
| Cut-Out Size | 287 mm |
| Fan Size | 250 mm |
| Frequency | 50 Hz |
| IP Rating | IPX4 |
| Material | ABS |
| Min. Install Depth | 110 mm |
| Motor Type | Ball Bearing |
| Mounting Method | Ceiling |
| Noise Level | 44 dB |
| Voltage | 230 Volt |
| Wattage | 40 Watt |
| Width | 110 mm |
