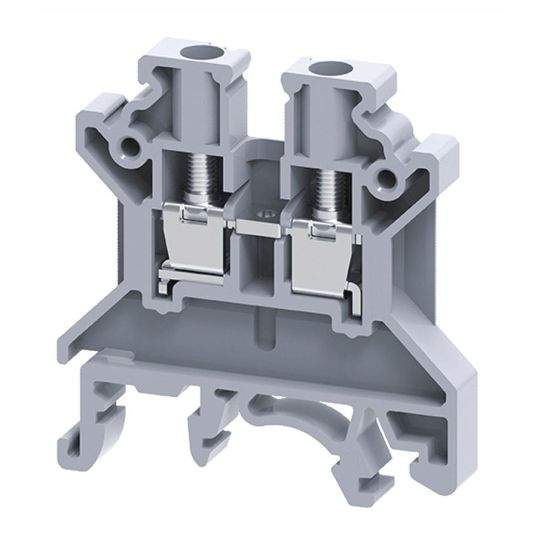

Connectwell Rail Terminal Block Screwed Clamp 2 Wire 4mm Grey Polyamide 66
Description
4 mm Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. A specially designed flexible foot enable easy mounting and dismounting from the DIN rail with the help of screw driver. These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links/sleeves and screws.
Key Specifications
| Barcode (EAN-13) |
9322017020262
|
|---|---|
| SKU |
ALSCTS4UN
|
| Brand |
Connectwell
|
| Product Type |
Rail Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CTS4UN |
| Colour | Grey |
| Conductor Size | 0.2-4mm |
| Current Rating | 32 Amp |
| Depth | 6 mm |
| Height | 51.1 mm/53.7 mm/46.2 mm |
| Insulation Material | Polyamide 66 |
| Number of Levels | 1 |
| Number of Conductors | 2 |
| Mounting Method | DIN 32/35/35-15 |
| Rated Surge Voltage | 8 kV |
| Terminal Type | Screw Clamp |
| Tightening Torque | 0.5 Nm |
| Wire Entry Orientation | Side |
| Voltage Rating | 1000 Volt |
| Width | 43 mm |
| Wire Strip Length | 8 mm |
| Wiring Format | 2 Conductor Through |
