IPD Fuse Link HRC 2 Hole Fixing Bolt In Centre 125 Amp 415VAC 80 kA Class gG BS88 Type B2
Loading...
Description

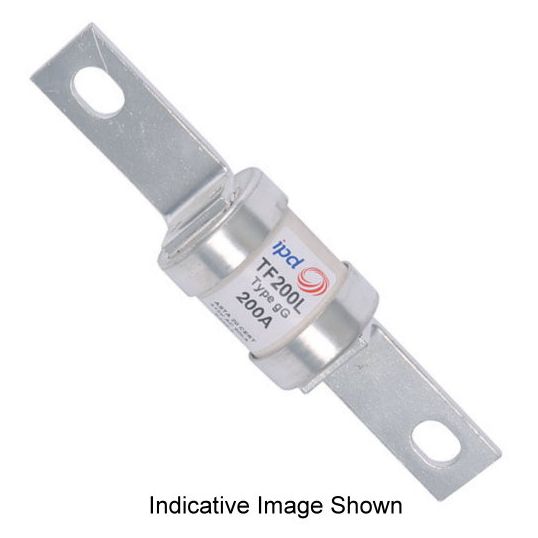

Fuse Link HRC Bolt In Centre 2 Hole Fixing, 415 VAC, 125 Amp, Class gG, Interrupt Capacity: 80 kA, 111mm Fixing Centres, Bolt In Centre Tag, 36.1mm Diameter x 137mm Length, BS88 Type B2
Key Specifications
| Barcode (EAN-13) |
9322017011291
|
|---|---|
| SKU |
ALSTF125L
|
| Brand |
IPD
|
| Range Name |
Red Spot
|
| Product Type |
Fuse Links HRC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | TF125L |
| Current | 125 Amp |
| Dimensions | 36.1 mm Diameter x 137 mm Length |
| Fixing Centres | 111 mm |
| Interrupt Capacity | 80 kA |
| Standard Reference | BS88 Type B2 |
| Tag Type | Bolt In Centre |
| Utilisation Category | Class gG |
| Voltage | 415 Volt AC |
