Flexible Cable 1 Core 70mm 0.6/1kV Copper XLPE/5V90 PVC Orange
Description

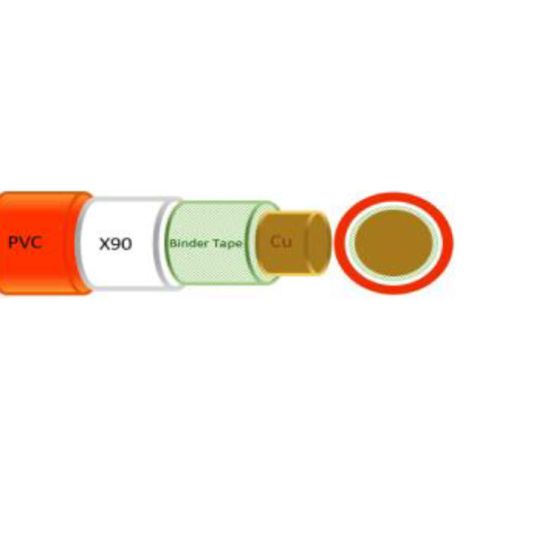

Flexible Cable, 70 mm, Annealed Copper, 0.6-1 kV, 1 Core, 17.2 mm Overall Diameter, 103 mm During Installation/69 mm After Installation Bend Radius, 1.1 mm Insulation Thickness, 1.4 mm Sheath Thickness, 0.272 Ohm/km Conductor Resistance, 3000 GOhm/m Insulation Resistance, XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 90 deg C, AS/NZS 5000.1 AS/NZS 3808 AS/NZS 3008 AS/NZS 1660 AS/NZS 1574
Key Specifications
| Barcode (EAN-13) |
932666302072
|
|---|---|
| SKU |
APEFXV070WO
|
| Brand |
APEC
|
| Product Type |
Flexible Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121500 |
| UOM | MTR |
| Vendor Product | FXV070WO |
| Bend Radius | 103 mm During Installation - 69 mm After Installation |
| Conductor Resistance | 0.272 Ohm/km |
| Conductor Size | 70 mm |
| Conductor Type | Annealed Copper |
| Insulation Colour | White |
| Insulation Material | XLPE |
| Insulation Resistance | 3000 GOhm/m |
| Insulation Thickness | 1.1 mm |
| Overall Diameter | 17.2 mm |
| Number of Cores | 1 Core |
| Sheath Colour | Orange |
| Sheath Material | 5V-90 PVC |
| Sheath Thickness | 1.4 mm |
| Standards | AS/NZS 5000.1 AS/NZS 3808 AS/NZS 3008 AS/NZS 1660 AS/NZS 1574 |
| Temperature | -25 to 90 deg C |
| Voltage | 0.6-1 kV |
