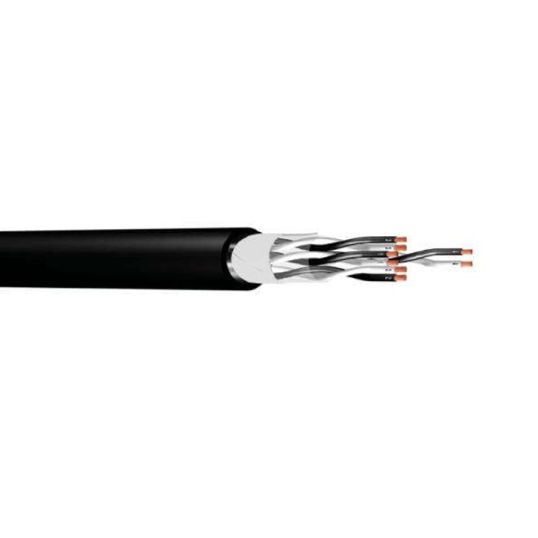

APEC 0.5mm 20 Pair Instrumentation Cable Unarmoured Overall Screened
Description
Instrumentation Cable, Unarmoured, 0.5 mm, Annealed Copper, 110-150 Volt, 20 Pair, 7/0.3 mm Strands, Overall Screened Screen, 17.8 mm Overall Diameter, 0.4 mm Insulation Thickness, Black/White Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 1125 UL 2464
Key Specifications
| Barcode (EAN-13) |
932666301782
|
|---|---|
| SKU |
APEINSVO005P20B
|
| Brand |
APEC
|
| Product Type |
Instrumentation Cable Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | INSVO005P20B |
| Conductor Size | 0.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Black/White Numerals |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.4 mm |
| Number of Pairs | 20 Pair |
| Overall Diameter | 17.8 mm |
| Sheath Colour | Black |
| Screen Format | Overall Screened |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 UL 2464 |
| Stranding | 7/0.3 mm |
| Voltage | 110-150 Volt |
