APEC 95mm Orange Circular Cable Unarmoured X-90 XLPE/5V-90 PVC 1mtr

chevron-left

Description

chevron-down

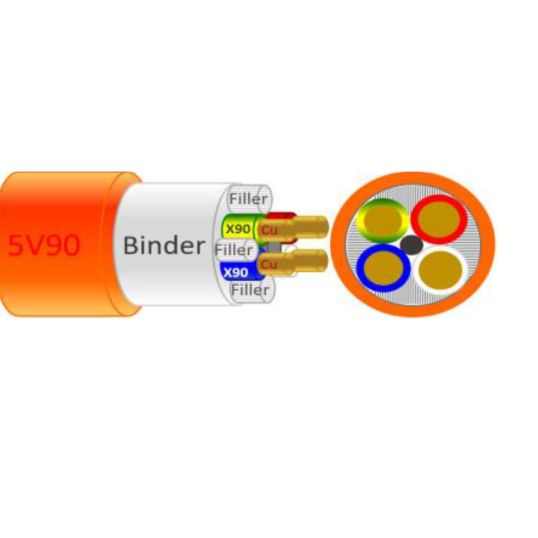

Circular Cable, Unarmoured, 95mm, Annealed Copper, 0.6-1 kV, 3 Core + Earth, 19/2.52mm Strands, 40.9mm Overall Diameter, 25mm Earth Conductor, 1 mtr Length, 1.1mm + 0.9mm Earth Insulation Thickness, 2.2mm Sheath Thickness, Red/Blue/White/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

chevron-down
Barcode (EAN-13)
932666301003
SKU
APEMX095E03
Brand
APEC
Product Type
Circular Cable Unarmoured

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product MX095E03
Conductor Size 95 mm
Conductor Type Annealed Copper
Core Colours Red/Blue/White/Green/Yellow
Insulation Thickness 1.1 mm + 0.9 mm Earth
Insulation Material X-90 XLPE
Earth Conductor Size 25 mm
Number of Cores 3 Core + Earth
Overall Diameter 40.9 mm
Sheath Colour Orange
Sheath Material 5V-90 PVC
Sheath Thickness 2.2 mm
Stranding 19/2.52 mm
Standards AS/NZS 5000.1
Temperature 90 deg C
Voltage 0.6-1 kV
