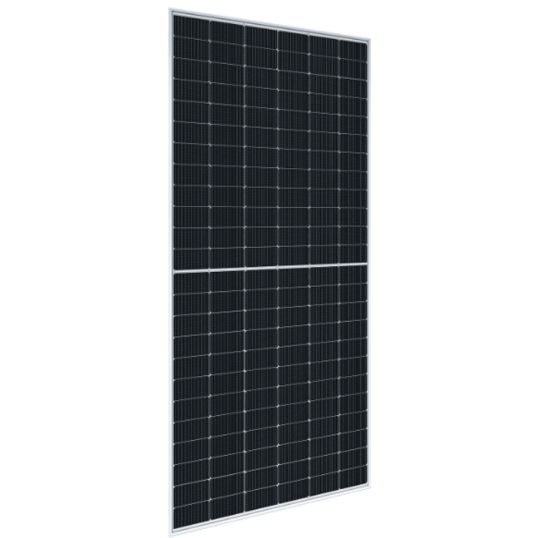

Astronergy Astro 5 Semi Monofacial Solar Panel 550 Watt P-Type Mono-Crystalline 182 Cells Silver Frame 35mm
Description
Solar Panel, P-Type Monocrystalline Cell, 182 Cell, 550 Watt, 42 Volt Max. Voltage, 13.06 Amp Max. Current, 50.1 Volt Open Circuit Voltage, 13.9 Amp Short Circuit Current, 25 Amp Max. Fuse Current, 1500 Volt DC Max. System Voltage, 21.3% Efficiency, 0-5 Watt Power Tolerance, PV-KST4-EVO2/XY-UR, PV-KBT4-EVO2/XY-UR Connector, 4 mm (IEC)/12 AWG (UL) Output Cables, Junction Box: IP68/3 w/Bypass Diodes, Silver Anodized Aluminium Frame, 3.2 mm, -0.35%/deg C Temperature Coefficient, 2278 mm Length, 1134 mm Width, 35 mm Height, 26.9 kg, TUV Rheinland, CE ISO 9001 2015/14001 2015/45001, 12 Years
Key Specifications
| SKU |
ASTCHSM72M-HC-550SF
|
|---|---|
| Brand |
Astronergy
|
| Product Type |
Solar Panels
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | CHSM72M-HC-550SF |
| Cell Type | Monocrystalline |
| Certifications | TUV Rheinland, CE ISO 9001 2015/14001 2015/45001 |
| Connector Type | PV-KST4-EVO2/XY-UR, PV-KBT4-EVO2/XY-UR |
| Efficiency | 21.3% |
| Frame Construction | Silver Anodized Aluminium |
| Front Glass | 3.2 mm |
| Height | 35 mm |
| Item Weight | 26.9 kg |
| Junction Box | IP68/3 w/Bypass Diodes |
| Max. Current | 13.06 Amp |
| Max. Fuse Current | 25 Amp |
| Max. Voltage | 42 Volt |
| Max. System Voltage | 1500 Volt DC |
| Number Of Cells | 182 |
| Open Circuit Voltage | 50.1 Volt |
| Output Cables | 4 mm (IEC)/12 AWG (UL) |
| Power Tolerance | 0-5 Watt |
| Short Circuit Current | 13.9 Amp |
| Temperature Coefficient | -0.35%/deg C |
| Warranty | 12 Years |
| Wattage | 550 Watt |
| Width | 1134 mm |
