AFL Stranded Loose Tube Fiber Optic Cable 24 Count Singlemode G.652.D Polyethylene
Description

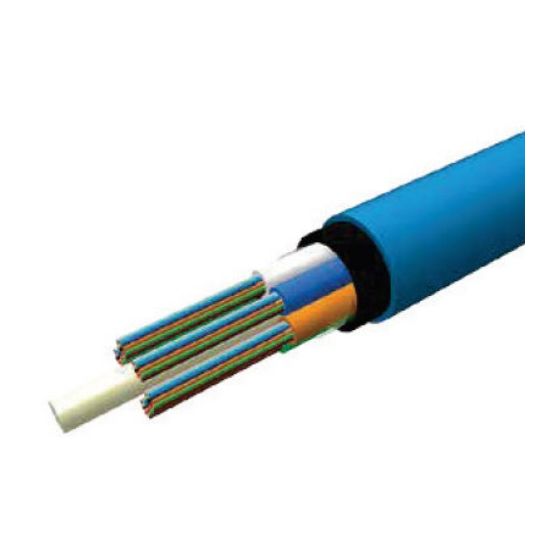

Stranded cable comprising up to 72 optical fibres contained in jelly-filled loose tubes (up to 12 fibres per tube). The tubes and fillers are laid around a central strength member and contained within a dry, water blocked cable core, sheathed with polyethylene (PE) and UV stable, termite resistant nylon jacket. Surface printing includes length marking at one metre intervals.
Key Specifications
| SKU |
ATALMD61DPA024BE
|
|---|---|
| Brand |
AFL
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 43223300 |
| UOM | MTR |
| Vendor Product | LMD61DPA024BE |
| Bend Radius | 192 mm Under Load/96 mm No Load |
| Construction | Nylon Sheath |
| Fibre Count | 24 |
| Fibre Mode | Singlemode |
| Impact Resistance | 1 g/m |
| Fibre Type | G.652.D |
| Number of Fibres | Up to 72 |
| Outside Diameter | 9.6 mm |
| Sheath Material | Polyethylene |
| Temperature | 40 to 70 deg C |
| Tube Size | 2 mm |
