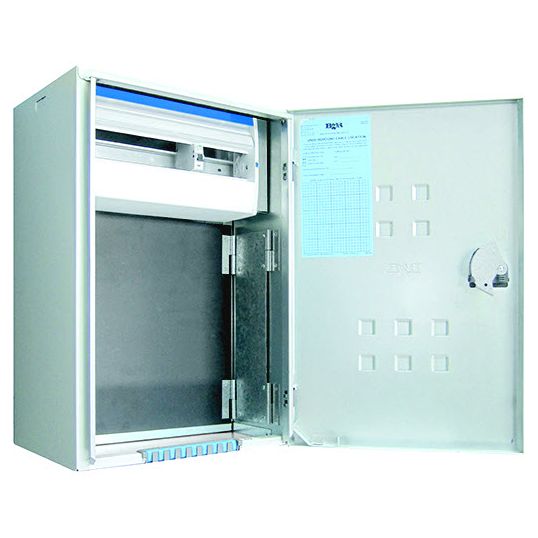

B&R Meter Box Northern Territory 18 Pole W400mm H600mm D300mm DIN Mount Steel Galvanised

chevron-left

Description

chevron-down
Meter Box Northern Territory, 63 Amp MCB, 18 Pole, Side Hinged Door, Padlock, 600 mm Enclosure Height, D10 Enclosure Width, 300 mm Enclosure Depth, 390 mm Panel Height, 385 mm Panel Width, IP23, DIN Rail Mounting, Steel, RAL 7035 Grey, Galvanised

Key Specifications

chevron-down
Barcode (EAN-13)
9321228051621
SKU
B&RD10
Brand
B&R
Product Type
Meter Boxes Domestic

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for both single and multi-phase installations
  • Provide safety, quality and performance
  • Suitable for domestic and light commercial metering applications
  • Easy-to-use gravity catch
  • Ratchet sliding cable entry
  • Rota DIN rotating/removable DIN section
  • Cord retainer for easy retention of extension cords
  • Identification with covered labelling section
  • Weatherproof installation label for AS/NZS3000 compliance
  • Padlockable facility
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product D10
Colour Grey
Door Type Side Hinged
Enclosure Depth 300 mm
Enclosure Height 600 mm
Enclosure Width D10
Finish Galvanised
IP Rating IP23
Lock Type Padlock
Material Steel
Mounting Method DIN Rail
Number Of Poles 18 Pole
Panel Height 390 mm
Panel Width 385 mm
Service Facilities 63 Amp MCB
