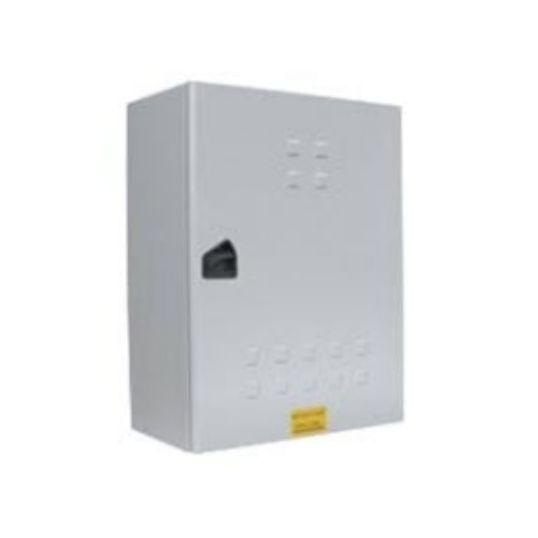

B&R Meter Box Queensland 24 Pole W485mm H690mm D278mm DIN Mount Steel Galvanised

chevron-left

Description

chevron-down
Meter Box Queensland, 24 Pole, Side Hinged Door, Padlock, 690 mm Enclosure Height, 485 mm Enclosure Width, 278 mm Enclosure Depth, 480 mm Panel Height, 461 mm Panel Width, IP23, DIN Rail Mounting, Stainless Steel, RAL 7035 Grey, Galvanised

Key Specifications

chevron-down
Barcode (EAN-13)
9321228074286
SKU
B&RQ20/S
Brand
B&R
Range Name
Ausrack Wall onyX
Product Type
Meter Boxes Domestic

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Designed for both single and multi-phase installations
  • Provide safety, quality and performance
  • Suitable for domestic and light commercial metering applications
  • Easy-to-use gravity catch
  • Ratchet sliding cable entry
  • Rota DIN rotating/removable DIN section
  • Cord retainer for easy retention of extension cords
  • Identification with covered labelling section
  • Weatherproof installation label for AS/NZS3000 compliance
  • Padlockable facility
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product Q20/S
Colour Grey
Door Type Side Hinged
Enclosure Depth 278 mm
Enclosure Height 690 mm
Enclosure Width 485 mm
Finish Galvanised
IP Rating IP23
Lock Type Padlock
Material Stainless Steel
Mounting Method DIN Rail
Number Of Poles 24 Pole
Panel Height 480 mm
Panel Width 461 mm
