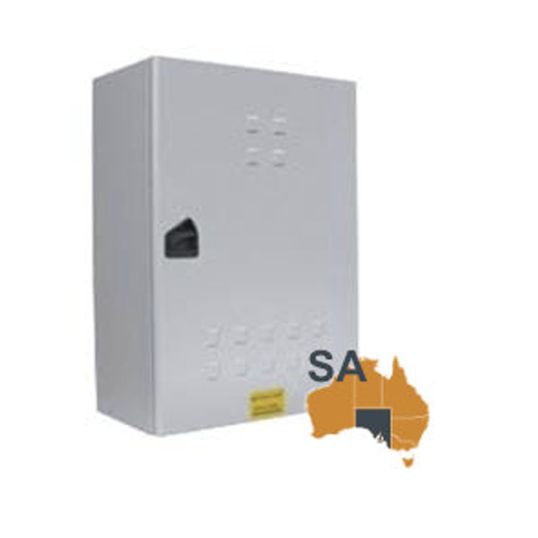

B&R Horizon S Series Residential Metering Enclosure 24 Pole RotaDIN 590x365mm Panel IP23

$B&R\B&R_S20.jpg$ $B&R\B&R_S20.jpg$

Description

Residential Metering Enclosure, 24 Pole, 860mm Height, 485mm Width, 278mm Depth, 590mm Panel Height, 365mm Panel Width, IP23, For Use With: Type 1 and Type 2 Meter Panel, 1mm Galvanised Steel or 316 Stainless Steel, Light Grey RAL7035 or N4 Surface

Key Specifications

Barcode (EAN-13)	9321228074330
SKU	B&RS20
Brand	B&R
Product Type	Enclosures

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed for both single and multi-phase installations AS/NZS 3012 compliant for construction sites as standard. Provides safety, quality and performance. Suitable for domestic and light commercial metering applications Easy-to-use gravity catch Top cable entry has ratchet aperture shut-off slide. RotaDIN rotating / removable DIN section Cord retainer for easy retention of extension cords Circuit identification label area with protective cover Weatherproof installation label for AS/NZS3000 compliance
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	S20
Colour	Light Grey
Enclosure Depth	278mm
Enclosure Height	860mm
For Use With	Type 1 and Type 2 Meter Panel
Enclosure Width	485mm
IP Rating	IP23
Material	Galvanised Steel/Stainless Steel
Number Of Poles	24 Pole
Panel Height	590mm
Panel Width	365mm
