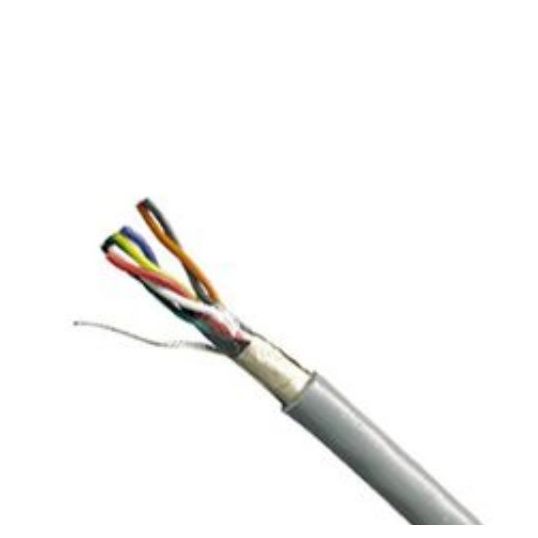

Belden Data Cable 3 Pair Overall Screened 24 AWG 0.3kV FPE/AL/PVC Chrome RS232/422
Loading...
Description
Data Cable, RS232/422, 3 Pair, Overall Screened, 24 AWG, Tinned Copper, 0.3 kV, 1.8 Amp, 7x32 Strands, 0.261 in Overall Diameter, 2.75 in Bend Radius, 33 lbs Pulling Tension, Conductor Resistance: DC - 24 Ohm/1000ft, 100% Screen Coverage, Aluminium/Polyester Tape, Foam Polyethylene Insulation, PVC Sheath, Chrome Sheath, -20 to 80 deg C
Key Specifications
| SKU |
BEL1420AR305CE
|
|---|---|
| Brand |
Belden
|
| Product Type |
Data Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 305 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1420A 0601000 |
| Bend Radius | 2.75 inch |
| Conductor Resistance | DC: 24 Ohm/1000 ft |
| Conductor Type | Tinned Annealed Copper |
| Conductor Size | 6 mm |
| Current | 1.8 Amp |
| Insulation Material | Foam Polyethylene |
| Number of Pairs | 3 Pair |
| Overall Diameter | 0.261 inch |
| Please Note | RS232/422 |
| Screen Coverage | 100% |
| Pulling Tension | 33 lbs |
| Sheath Colour | Chrome |
| Screen Material | Aluminium/Polyester Tape |
| Screen Format | Overall Screened |
| Sheath Material | PVC |
| Stranding | 7x32 |
| Voltage | 0.3 kV |
| Temperature | -20 to 80 deg C |
