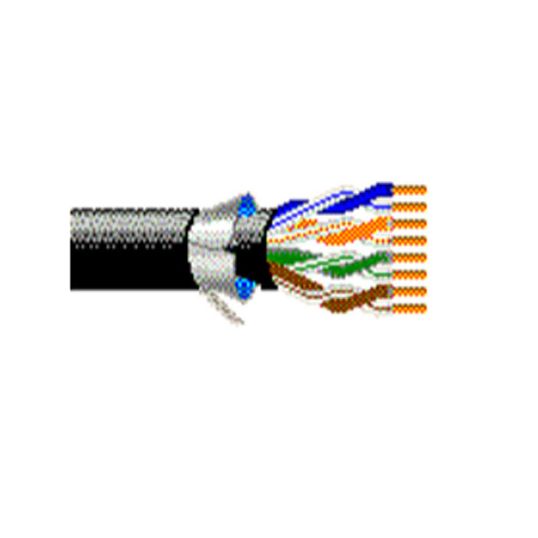

Belden 7937A Data Cable Cat5e Multi-Conductor DataTuff 4 Pair Screened 24AWG Polyolefin/Polyethylene Black
Description
Data Cable Cat5e 4 Pair Screened, 300 Volt RMS, 24 AWG, 100 MHz Bandwidth, 9.38 Ohm/100 mtr at 20 deg C Conductor Resistance, 100% Screen Coverage, Cat5e Cable, 4 Pair, Bend Radius: 2.750 in, 40 lbs Max. Pulling Force, Solid Bare Copper Conductor, Polyolefin Insulation, LLPE-Linear Low Density Polyethylene Sheath, Aluminium Foil-Polyester Tape Screen, Black Sheath,-40 to 75 deg C, 0.276 in Outside Diameter
Key Specifications
| SKU |
BEL7937A0101000
|
|---|---|
| Brand |
Belden
|
| Range Name |
Inca
|
| Product Type |
Cat5e Data Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | EA |
| Vendor Product | 7937A 0101000 |
| Cable Type | Cat5e |
| Bend Radius | 2.750 in |
| Conductor Resistance | 9.38 Ohm/100 mtr at 20 deg C |
| Conductor Size | 24 AWG |
| Conductor Material | Solid Bare Copper |
| Frequency Bandwidth | 100 MHz |
| Insulation Material | Polyolefin |
| Max. Pulling Force | 40 lbs |
| Pair Count | 4 Pair |
| Outside Diameter | 0.276 in |
| Screen Material | Aluminium |
| Sheath Colour | Black |
| Sheath Material | LLPE-Linear Low Density Polyethylene |
| Temperature | -40 to 75 deg C |
| Voltage | 300 Volt |
