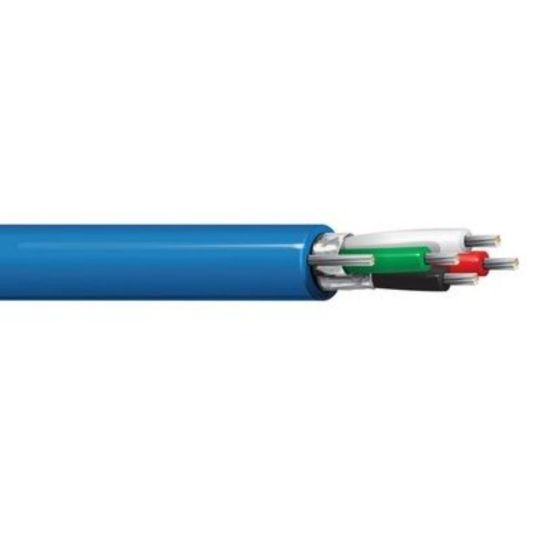

Belden 22 AWG 2 Pair Chrome Data Cable Individually Screened Polypropylene/PVC
Description
Data Cable, 22 AWG, Tinned Annealed Copper, 0.3 kV, 2.3 Amp, 2 Pair, 7x30 Strands, Individually Screened Screen, 4.064 mm Overall Diameter, 40.64 mm Bend Radius, 0.009 in Insulation Thickness, 0.02 in Sheath Thickness, 42 lbs Pulling Tension, DC: 48.2307 Ohm/km Conductor Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Black/Red/Green/White Core, Polypropylene Insulation, PVC Sheath, Chrome Sheath, 60 deg C, UL 1685 UL Loading IEC 60332-1-2
Key Specifications
| SKU |
BEL8723U305CE
|
|---|---|
| Brand |
Belden
|
| Product Type |
Data Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 305 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 8723 060U1000 |
| Conductor Resistance | DC: 48.2307 Ohm/km |
| Bend Radius | 40.64 mm |
| Conductor Size | 22 AWG |
| Core Colours | Black/Red/Green/White |
| Conductor Type | Tinned Annealed Copper |
| Current | 2.3 Amp |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.009 in |
| Number of Pairs | 2 Pair |
| Overall Diameter | 4.064 mm |
| Pulling Tension | 42 lbs |
| Screen Format | Individually Screened |
| Screen Coverage | 100% |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Chrome |
| Sheath Thickness | 0.02 in |
| Sheath Material | PVC |
| Standards | UL 1685 UL Loading IEC 60332-1-2 |
| Stranding | 7x30 |
| Temperature | 60 deg C |
| Voltage | 0.3 kV |
