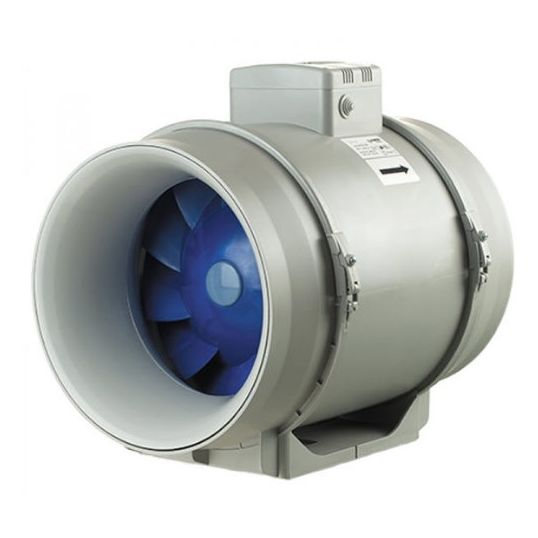

Blauberg In-Line Ducted Exhaust Fan 315mm 230V 0.99-1.42 Amp 227-315W 1420-1750 cu-m/hr 41-52 dBA at 3m Light Grey

chevron-left

Description

chevron-down
In-Line Ducted Exhaust Fan, Fan Size: 315mm, 230 Volt, 0.99-1.42 Amp, 227-315 Watt, 50/60 Hz, Phase: 1 Phase, Air Flow Rate (cu-m/hr): 1420-1750 cu-m/hr, 41-52 dBA at 3m, IPX4, IP44, In-Line Mounting, Plastic, Light Grey, 445mm Length, 362mm Width, 408mm Height

Key Specifications

chevron-down
SKU
BLATURBO315
Brand
Blauberg
Range Name
Turbo
Product Type
Exhaust Fans Ducted

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Supply and extract ventilation Systems installed in various premises
  • Mounting in kitchens, bathrooms and other humid premises
  • Ventilation air ducts requiring high pressure, powerful air flow and low noise level
  • Compatible with 100 up to 315mm dia round air ducts
  • The casing is made of low-flammable polypropylene
  • Ventilation unit with terminal box
  • Can be turned to any position
  • Special design of the casing permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct
  • Two-speed single-phase motor on ball bearings
  • Equipped with thermal overheating protection
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product BLATURBO315
Air Flow Cubic Meters per Hour 1420-1750 cu-m/hr
Colour Grey
Fan Size 315 mm
Current 0.99-1.42 Amp
Frequency 50/60 Hz
Height 408 mm
IP Rating IPX4/44
Material Plastic
Phase 1 Phase
Sound Level 41-52 dBA at 3m
Wattage 227-315 Watt
Width 362 mm
Voltage 230 Volt
