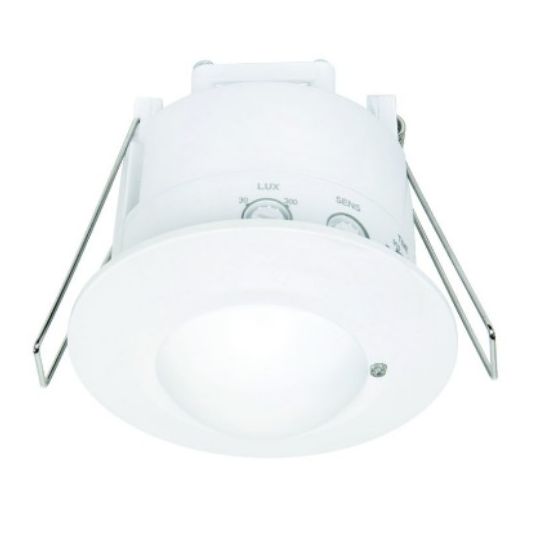

Brilliant Lighting Eye 360 Microwave Security Sensor Ceiling Recessed 360deg IP20 White

Description

Microwave Security Sensor, Sensing Range: 16 mtr, Sensing Beam: 360 deg, Response Time: 10 sec-12 min, 240 Volt, Wattage: Incandescent: 1200 Watt, Fluorescent: 300 Watt, LED: 150 Watt, Frequency: 50 Hz, 5.8 GHz HF System, Lux: 3-2000 lx (adjustable), 1.5-3.5 mtr Mounting Height, Mounting Method: Ceiling Recessed, IP20, Material: UV Resistant Polycarbonate, White, Dimensions: 76mm Diameter x 77mm Height x 61.5mm Depth, 65mm Cut-Out

Key Specifications

Barcode (EAN-13)	9312641200512
SKU	BRI20051/05
Brand	Brilliant Lighting
Range Name	Eye
Product Type	Sensors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Automatically activated by motion and light level Ceiling recessed mount Wide detection area, up to 16m in diameter Motion can be detected through plastic, glass and thin non-metal materials Adjustable time, lux level and detection area Reliable 3-wire design Indoor use only Lux setting
Standard Pack Size	1
UNSPSC Class	32151900
UOM	EA
Vendor Product	20051/05
Colour	White
Dimensions	76mm Diameter x 77mm Height x 61.5mm Depth
IP Rating	IP20
Frequency	50 Hz/5.8 GHz HF System
Lux	3-2000 lx
Mounting Height	1.5-3.5 mtr
Material	Polycarbonate
Mounting Method	Ceiling
Please Note	65mm Cut-Out
Response Time	10 sec-12 min
Sensing Beam	360 Degree
Sensing Range	16 mtr
Voltage	240 Volt
Wattage	Incandescent: 1200 Watt/Fluorescent: 300 Watt/LED: 150 Watt
