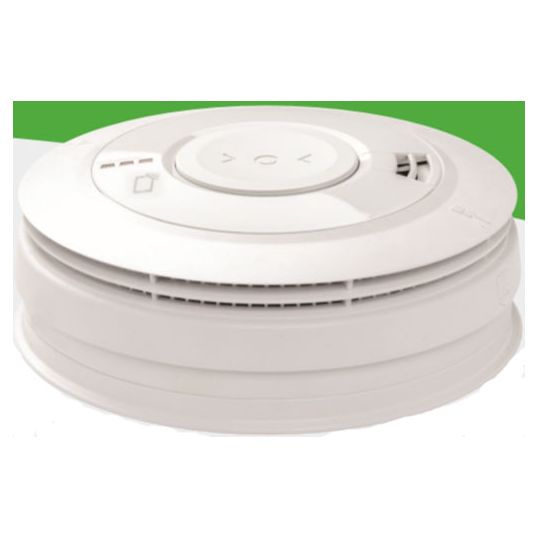

Brooks Smoke Alarm Photoelectric 230 VAC 85 dBA at 3 m Plastic 150mm x 55mm 10 Year Lithium

chevron-left

Description

chevron-down
The EIB3016 alarm features a high performance photoelectric smoke sensor, ideal for detecting smoke from slow, smouldering fires. In addition, the chamber design, integrated insect screen and unique dust compensation algorithm reduce the risk of false alarms. The EIB3016 is powered by 230V AC mains. In the event of mains failure, the rechargeable 10-year built-in non-removable lithium battery will provide up to 3 months power supply in the case of a wireless RF installation or up to 6 months in any other case. The AudioLINK feature facilitates acoustic download of the alarm parameters and status using the AudioLINK app. The EIB3016 can operate as a standalone alarm or can be interconnected either by hard-wire or wirelessly (using the EIB3000MRF module) enabling it to communicate with compatible Brooks alarms and accessories. Up to 12 devices can be interconnected. The EIB3016 self-checks its sensor, battery voltage and internal circuitry every 48 seconds. Any fault condition found will be indicated by a combination of yellow LED flashes and chirps. The memory feature allows an alarm that has previously activated to be easily identified (through the red flashing LED).

Key Specifications

chevron-down
Barcode (EAN-13)
9317537000481
SKU
BROEIB3016
Brand
Brooks
Range Name
3000 Series
Product Type
Smoke Alarms

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • High performance photoelectric sensor
  • SmartLINK compatible
  • AudioLINK data download
  • Automatic dust compensation
  • Hardwire interconnect (up to 12 devices)
  • Optional wireless interconnect (with EIB3000MRF module)
  • Easy to use large Test/Silence button
  • Memory function
  • Easi-fit base
  • Energy efficient and low power consumption
Standard Pack Size 1
UNSPSC Class 46191500
UOM EA
Vendor Product EIB3016
Battery Type Lithium Batteries
Coverage Up to 12 Devices
Control Type Button (Test/Silence)
Dimensions 150 mm Diameter x 55 mm Depth
Frequency 50 Hz
Humidity 15-95% RH
Material Plastic
Sensor Type Photoelectric
Temperature -10 to 40 deg C
Sound Level 85 dBA at 3 mtr
Terminal Type Screw
Voltage 230 Volt AC
