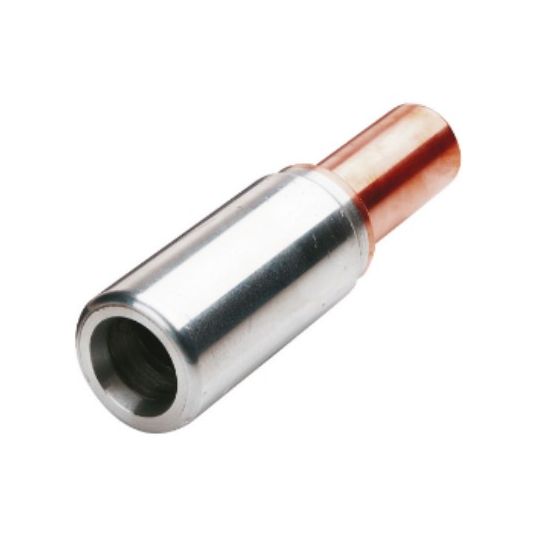

Cabac Crimp Link Reducing Bi-Metal 50mm 16mm 19/1.78 7/1.70 70mm OAL

Description

For stranded sector and circular stranded aluminium to stranded copper cable. The CABAC range of bi-metal crimp links are made to Australian dimensions and can be crimped with Australian standard tooling. They are friction welded from the highest quality aluminium (99.6% pure) and copper (99.9% pure). The barrels are coated with jointing compound, and the links are individually packed in plastic bags. A full range of standard sizes are available however, virtually any link can be machined to order at short notice.

Key Specifications

Barcode (EAN-13)	9318674506898
SKU	CAABLK50/16
Brand	Cabac
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint Link circular or sector stranded aluminium cable to circular copper cable Designed to be crimped with CABAC and MSS Power tools and dies Crimp with standard hex dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLK50/16
Conductive Material	Aluminium/Copper
Body Material	Aluminium/Copper
From Conductor Size	50 mm
From A-F Hex Die	13.2 mm
From Crimping Die	HT-50/70AL
From Inside Diameter	9.5 mm
From Number of Crimps	1
From Number of Strands	19/2.14
Overall Length	70 mm
To A-F Hex Die	6.3 mm
To Conductor Size	16 mm
To Crimping Die	HT130-C-16
To Inside Diameter	5.5 mm
To Number of Crimps	1
To Number of Strands	7/1.7
