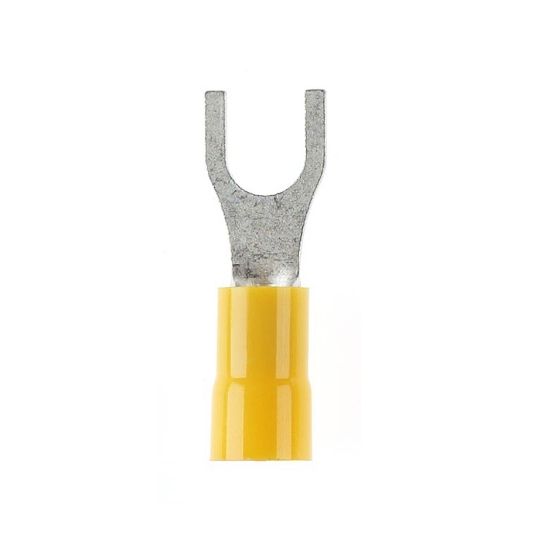

Cabac Forked Spade Insulated Double Grip 2.5-6mm M6 Stud Yellow

chevron-left

Description

chevron-down
Forked Spade Terminal Insulated Double Grip, 2.5-6 mm, M6 Stud, Fork Spade Terminal, 600 Volt, 200 Mpa Tensile Strength, 35% Ductile Rating, 1.738 micro-Ohm cm Resistivity, 99.5% IACS Conductivity, Copper Body, Annealed Copper, PVC Insulation, Yellow Insulation, Tin Electroplated, 75 deg C, 25 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9318674519867
SKU
CAAFS5.5-6DG
Brand
Cabac
Range Name
Pre-Insulated Terminals
Product Type
Forked & Ring Terminals

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Unique funnel entry that speeds wire termination - increasing reliability
  • Reduce installation errors - PVC insulation
  • High quality product - meets international standards
  • Funnel entry terminals allow easy conductor entry, minimising substandard crimps
  • Full technical back up including QA
  • Long term electrical integrity
Standard Pack Size 25
UNSPSC Class 39121400
UOM EA
Vendor Product FS5.5-6DG
Conductive Material Annealed Copper
Body Material Copper
Conductor Size 2.5-6mm
Conductivity 99.5% IACS
Ductile Rating 35%
Finish Tin Electroplated
Insulation Colour Yellow
Insulation Material PVC
Pack Size 25 Pack
Resistivity 1.738 micro-Ohm/cm
Stud Size M6
Temperature 75 deg C
Tensile Strength 200 MPa
Terminal Type Fork Spade
Voltage Rating 600 Volt
