Cabac Cable Gland EMC VSD Screened Cable Shielded-Long M32 15-21mm IP68

Description

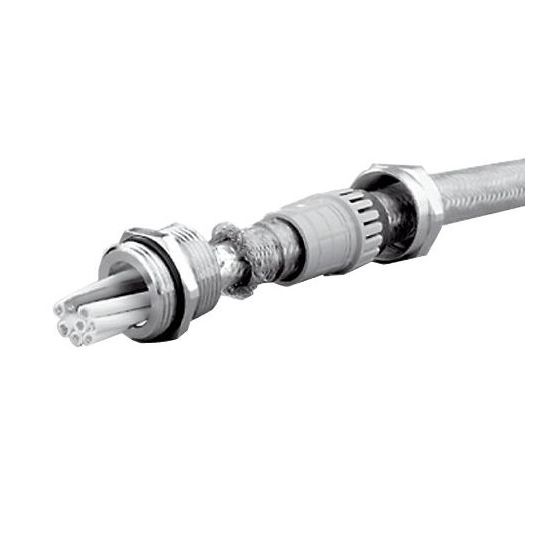

Our range of easy to use EMC glands are designed for the effective termination of mesh or foil shielded EMC cable. The product is comprised of a corrosion resistant, nickel plated brass body with a polyamide insert and NBR rubber seal. The gland utilises a camera-shutter type cable seal to achieve an IP68 (5 bar) waterproof rating whilst still supporting a wide cable diameter range. The product has integrated strain relief capability and includes a cable shield connection.

Key Specifications

Barcode (EAN-13)	9318674627494
SKU	CAAGU32EMC/L
Brand	Cabac
Range Name	Type EMC
Product Type	Cable Glands EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Metal EMC gland with camera shutter type cable seal rated IP68 (5 bar) and with cable shield connection Large cable range per gland sealing with CR/NBR rubber seal Nickel plated brass body with Polyamide 6 V-2 insert Locknut sold separately, but with NBR O-ring Ease of use with mesh or foil shielded cable
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	GU32EMC/L
Body Material	Brass
Finish	Nickel Plated
IP Rating	IP68
Max. Sheath OD	21 mm
Min. Sheath OD	15 mm
Seal Material	NBR
Temperature	20 to 100 deg C
Thread Length	13 mm
Thread Size	M32
Width Across Flats	34 mm
