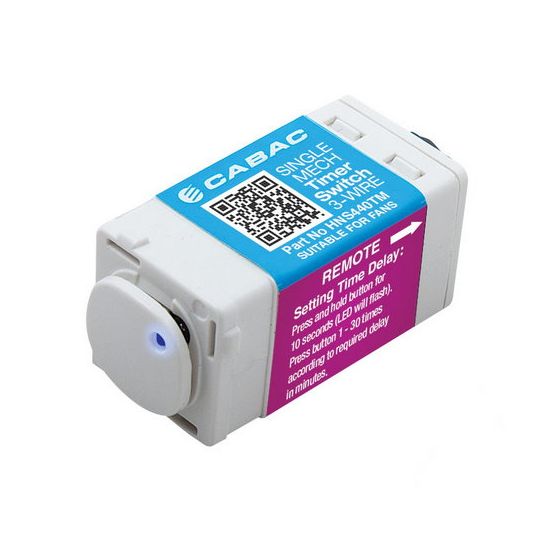

Cabac Timer Switch Mechanism Push Button Programmable Time Delay 1-30 min ON/OFF 5A 230/240V 1200W White

chevron-left

Description

chevron-down
The S-Click HNS440TM is a 3-wire minute timer switch that is ideal for fans, motors and commercial lighting. Time delay can be set in minute increments from 1-60 minutes-perfect for lights or appliances that are only required for relatively short periods. Alternatively, this 2-in-1 unit also allows for regular operation of lights and appliances; a sustained two-second press turns power on with no time out and can be manually turned off with a quick tap. Our minute timer switch is ideal for heat lamps, spa air pumps, exhaust fans and other fans. A blue LED indicates device status and gives an expiry warning within the last 10 seconds before program time-out. The timer settings are retained even after loss of power and can be configured to power up on or off after loss of mains power. Programming your chosen off time couldn't be simpler. A sustained 10 second press of the button enters programming mode. Just tap the button once for each minute of run time you require, up to 60 minutes. Programming mode expires 10 seconds after the last tap, and the unit then commits your settings to memory. If you happen to press the button more than 60 times, the maximum run time of 60 minutes will be stored.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674026143
SKU
CAAHNS440TM
Brand
Cabac

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Supports timer and untimed on modes of operation
  • Blue LED indicates device status
  • User programmable time out period
  • Programmable in 1 minute increments from 1 to 30 minute
  • When on, quick tap turns power off
  • Time out expiry warning given within the last 10 second of operation
  • Retains setting even after loss of power
  • Compatible with a wide range of load types including wire wound transformers and fan motors
  • Time set to 30 minute out of box
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product HNS440TM
Colour White
Control Type Pushbutton
Current 5 Amp
For Use With Fans/Motors and Commercial Lightings
Frequency 50 Hz
Number of Wires 3 Wire
Switch Function On/Off Button
Temperature 0 to 50 deg C
Terminal Type Screw
Wattage 1200 Watt/500 VA
