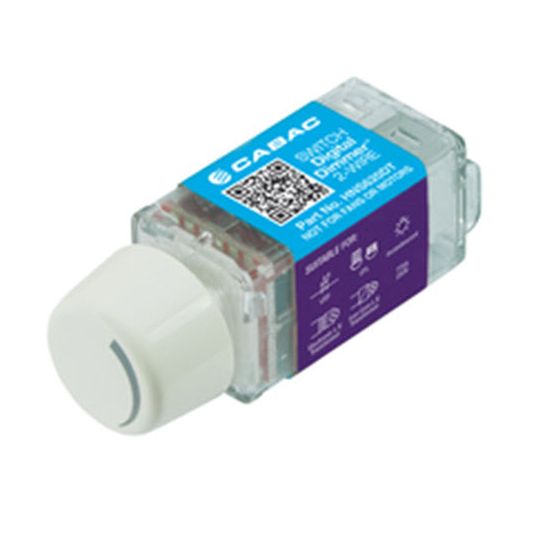

Cabac Light Dimmer Mechanism Rotary Push Button Universal 1.5A 230/240V ON/OFF 1-350W White

chevron-left

Description

chevron-down
The HNS620DT dimmer switch is simple to use and employs a familiar rotary-style dimming method. Turning the knob clockwise will brighten the lights and turning the knob anti-clockwise will decrease brightness. The wider range capability of the HNS620DT provides deep-dimming to zero on most lamps. This versatile 2-in-1 unit also provides push-button ON/OFF control and is the perfect solution for dimmable LED lighting and dimmable compact fluorescent lamps. The HNS620DT is equipped with timed dimming, a convenient bonus feature that automatically dims or brightens lighting. A double tap while lighting is ON will gradually dim lighting over 30 minutes before turning off. Conversely, a double tap when lighting is off will gradually increase brightness to full over 30 minutes. The LED indicator will blink every 5 seconds during timed dimming. The countdown can be cancelled at any time with a sustained 2-second press of the button.

Key Specifications

chevron-down
Barcode (EAN-13)
9318674109945
SKU
CAAHNS620DT
Brand
Cabac

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Rotary digital dimmer and pushbutton On/Off switch in one
  • Suits HPM, Clipsal, Voltex, ZETR and Traders wall plates with knobs
  • Wide range, deep dimming to zero on most lamp
  • Improved patent ripple tone rejection
  • Double tap when on makes light dim down to off over 30 minute
  • Double tap when off turns the light on at previous level and ramps to full brightness over 30 minute
  • Rugged over current, over voltage and temperature protection
  • Illuminated LED configuration
  • Retain setting after power loss
  • Trailing edge dimming with linear response
Standard Pack Size 1
UNSPSC Class 39122200
UOM EA
Vendor Product HNS620DT
Colour White
Control Type Push Rotary
Current 1.5 Amp
For Use With LED Lighting and Dimmable Compact Fluorescent Lamps
Frequency 50 Hz
Switch Function On/Off Button
Temperature 0 to 50 deg C
Wattage 1-350 Watt
