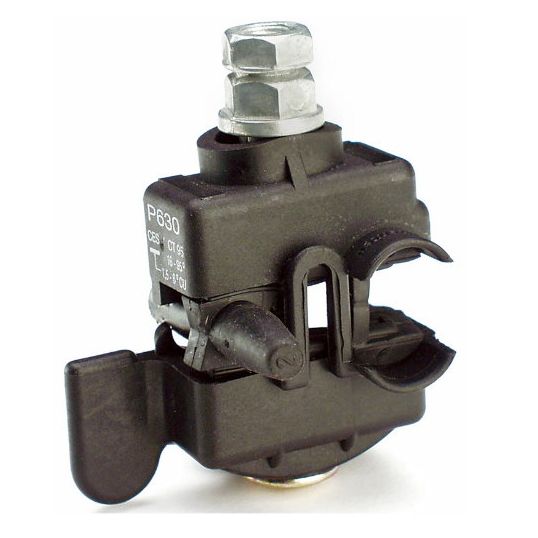

Cabac ABC Insulation Piercing Connector with Shear Head Bolts 10-95mm Aluminium Teeth

$Cabac\Cabac_IPC95_10.jpg$

Description

ABC Insulation Piercing Connector with Shear Head Bolts, 10-1.5 mm Conductor Branch Cable, 95-6 mm Conductor Main Cable, 11 N/m,1 Fastener, Fastener A/F: 13 mm, Aluminium Teeth Conductor, 125 deg C, with Shear Head Bolts

Key Specifications

Barcode (EAN-13)	9318674618591
SKU	CAAIPC95/10
Brand	Cabac
Product Type	Insulation Piercing Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Designed to tap off low voltage XLPE insulated ABC cables using a unique insulation piercing technique Suitable for all weather applications and corrosion resistant Connections can be made fully live in minutes Suitable for aluminium and copper Designed for all weather applications, corrosion resistant, ease of installation and low cost Connections can be made fully live in minutes, without time consuming crimping, applying insulation or sealing compound Body is moulded from tough, resilient, glass filled nylon for long service life exposed to weather (particularly sunlight) and is rounded to prevent damage to adjacent conductors Hardware is stainless steel, which does not corrode, allowing the IPC to be undone at any time in the future The bolt has a stainless steel pressure washer which maintains clamping pressure Shear head is made from glass filled nylon, for controlled shear torque
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	IPC95/10
Conductive Material	Aluminium Teeth
Conductor Size	10-1.5 mm Branch Cable/95-6 mm Main Cable
Temperature	125 deg C
Torque	11 Nm
